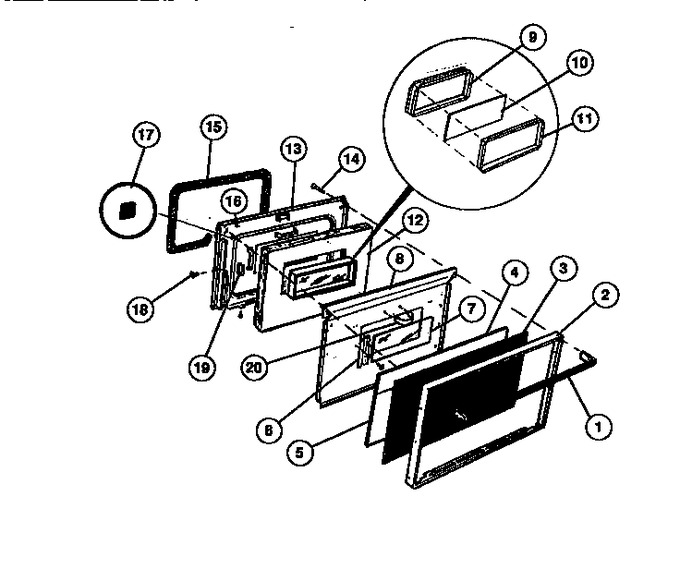

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303131256 | Handle |
|
- | |||||
| 2 | 3203480 | Trim, Oven Door |
|
- | |||||
| 3 | 5303131132 | Glass Front (black) |
|
- | |||||
| 4 | 3131361 | Alum Foil |
|
- | |||||
| 5 | 3131360 | Alum Foil |
|
- | |||||
| 6 | 3051148 | Glass, Heat Barrier |
|
- | |||||
| 6 | 3131366 | Brkt Glass (2) |
|
- | |||||
| 8 | 3202151 | Shield, Wool |
|
- | |||||
| 12 | 3200528 | Insulation-door |
|
- | |||||
| 13 | 3202147 | Liner-oven Door |
|
- | |||||
| 14 | 3016851 | Screw, Handle (2) |
|
- | |||||
| 15 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 16 | 08010463 | Fastener-clip |
|
- | |||||
| 17 | 3934033 | Seal, Foam |
|
- | |||||
| 18 | 3131974 | Fstnr Push In |
|
- | |||||
| 19 | 3131323 | Support, Glass |
|
- | |||||
| 20 | 3131720 | Clip, Retainer |
|
- | |||||
| *31802 | 3206271 | Glass Package |
|
- |
