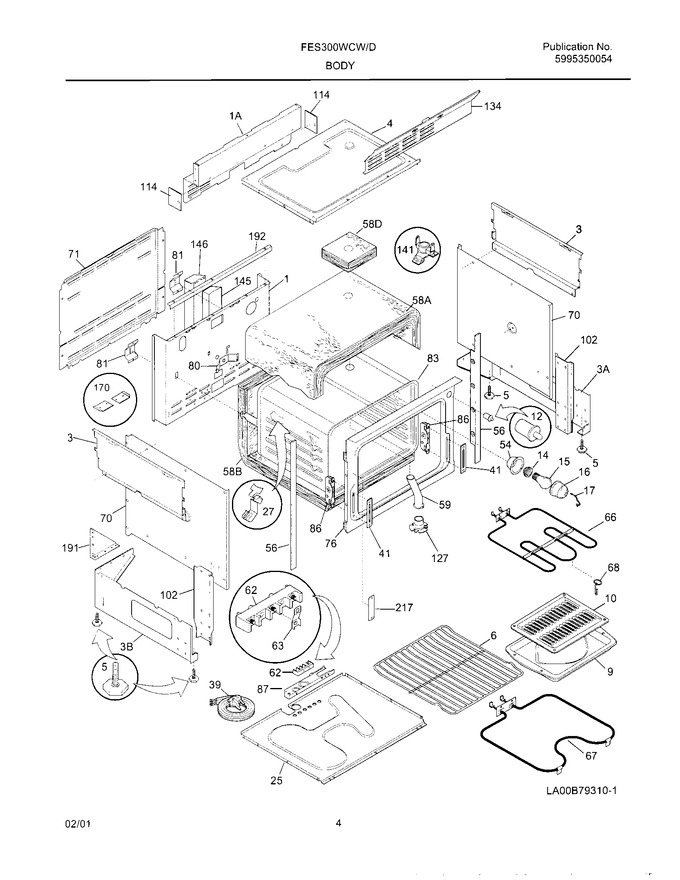

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318070910 | Back-main,upper |
|
- | |||||
| 1 | 318066402 | Back-main |
|
- | |||||
| 3 | 318160011 | Panel,galvanized |
|
- | |||||
| 3 | 318160010 | Panel-lower Side Rh,galvanised |
|
- | |||||
| 3 | 318159800 | Panel Body Side,galvanized ,upper |
|
- | |||||
| 4 | 318133400 | Burner Box |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 5301314211 | Switch-light |
|
$ 95.29 | |||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer Lenz |
|
- | |||||
| 25 | 318179107 | Shield,heat ,lower |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318002612 | Xxtrim Oven Front(whelectro.) |
|
- | |||||
| 58 | 5303310519 | Insulation, Oven Wrapper |
|
- | |||||
| 58 | 5303310516 | Insulation, Oven Back |
|
- | |||||
| 58 | 3008673 | Insulation |
|
- | |||||
| 59 | 318072524 | Vent Tube |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 63 | 5303310517 | Plate,ground Strap |
|
- | |||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 5303310515 | Cover-wiring |
|
$ 368.97 | |||||
| 76 | 318124101 | Front-oven |
|
- | |||||
| 80 | 5303324473 | Bracket-oven |
|
- | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 83 | 318089613 | Xxoven Ay (pyro. & Reg.) |
|
$ 205.64 | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 87 | 318111803 | Plate,mounting |
|
- | |||||
| 102 | 5303311142 | Support-oven Front |
|
- | |||||
| 114 | 318175100 | Plate-filler |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 134 | 318077610 | Xxshield Wire Louverhtopwarmer |
|
- | |||||
| 145 | 5303311108 | Weight |
|
- | |||||
| 146 | 318038502 | Cover,weight |
|
- | |||||
| 170 | 5304405243 | Xxanti-tip&accessories Ay |
|
- | |||||
| 191 | 5303304030 | Bracket Corner |
|
- | |||||
| 192 | 318042600 | Plate-reinforcement |
|
- | |||||
| 217 | 316042300 | Plate,warning |
|
- | |||||
| NI | 5303323129 | Screw,8 X 3/4 |
|
- | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 5303311124 | Screw,(4) |
|
- | |||||
| NI | 5303307980 | Screw, 8-32 X 7/16 |
|
Immediately | $ 14.18 | ||||
| NI | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303051099 | Nut, Hex, 10-32 |
|
- | |||||
| NI | 08016432 | Screw,truss Head ,8-18 X 0.375 ,(4) |
|
- | |||||
| NI | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| NI | 3201899 | Washer,hinge Assy |
|
- | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 |
|
- |
