SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Cooktop

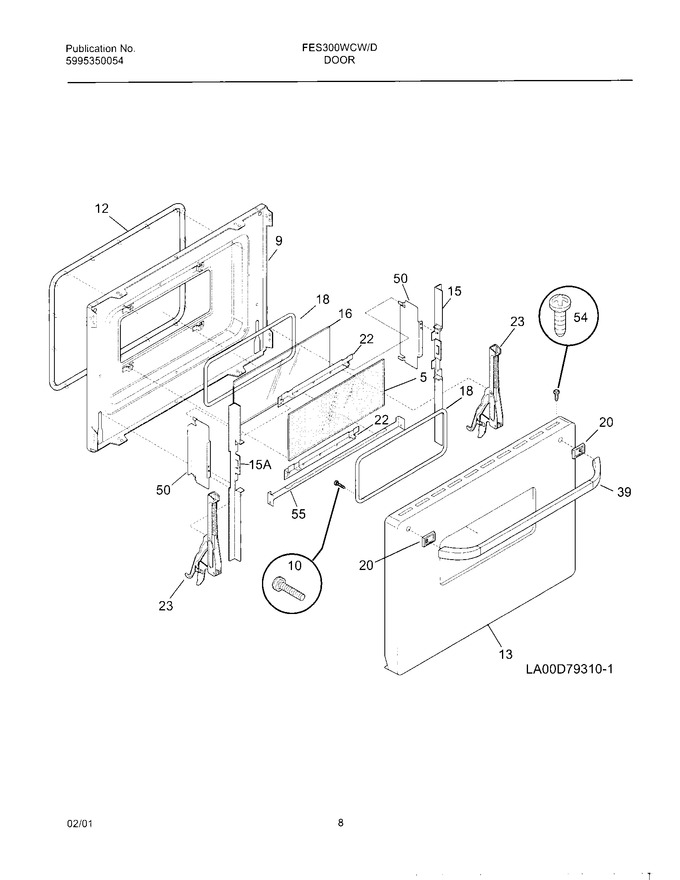

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	318211601		Glass		Appelez-nous	-
9	318157017		Liner-door		Appelez-nous	-
10	732022890		Screw Handle,10-24 X 5/8   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053301		Seal-oven Door			Immediately	$ 122.90
13	318009026		Panel-oven Door,white		Appelez-nous	-
15	5303311154		Bracket-glass Mtg,lh		Appelez-nous	-
15	5303311153		Bracket-glass Mtg				$ 10.87
16	318211602		Glass		Appelez-nous	-
18	318053203		Gasket				$ 57.54
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
39	316091119		Handle-door, White, Oven		Appelez-nous	-
50	318144900		Re-enforcement Glass		Appelez-nous	-
54	316021109		Screw,8-18 X 17/32 ,white   (Replaces: 5303317175)			Immediately	$ 27.50
55	318122300		Bracket-glass				$ 11.39
NI	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
NI	3201899		Washer,hinge Assy		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
