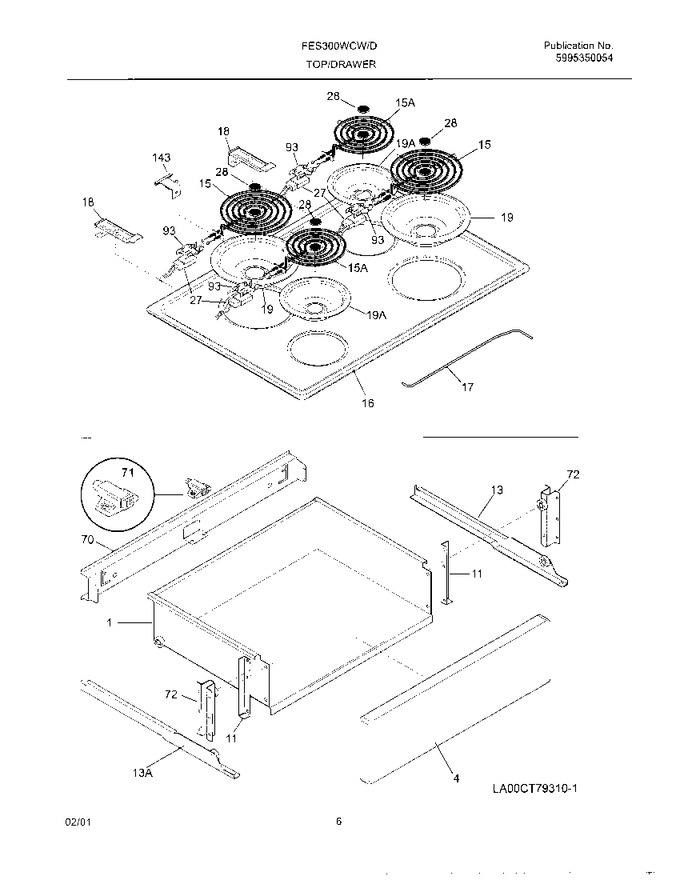

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
4	318134011		Panel,drawer ,white ,front		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311130		Channel,drawer ,lh		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
15	316439802		Element-surface, Small/6 Inch, (2)   (Replaces: 5303299749)			Immediately	$ 192.78
15	5308011964		Element,surface ,large/8 Inch ,(2) ,medallion Incl				$ 209.08
16	5303300166		Main Top, White		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
19	316048413		Pan-surface Element,large ,chrome   (Replaces: 318067020)			Immediately	$ 9.85
19	316048414		Pan-surface Element,small ,chrome   (Replaces: 318067021)			Immediately	$ 16.11
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
143	5303300148		Bracket-hinge		Appelez-nous	-
NI	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
NI	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	3201899		Washer,hinge Assy		Appelez-nous	-
NI	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	5303325174		Screw		Appelez-nous	-
