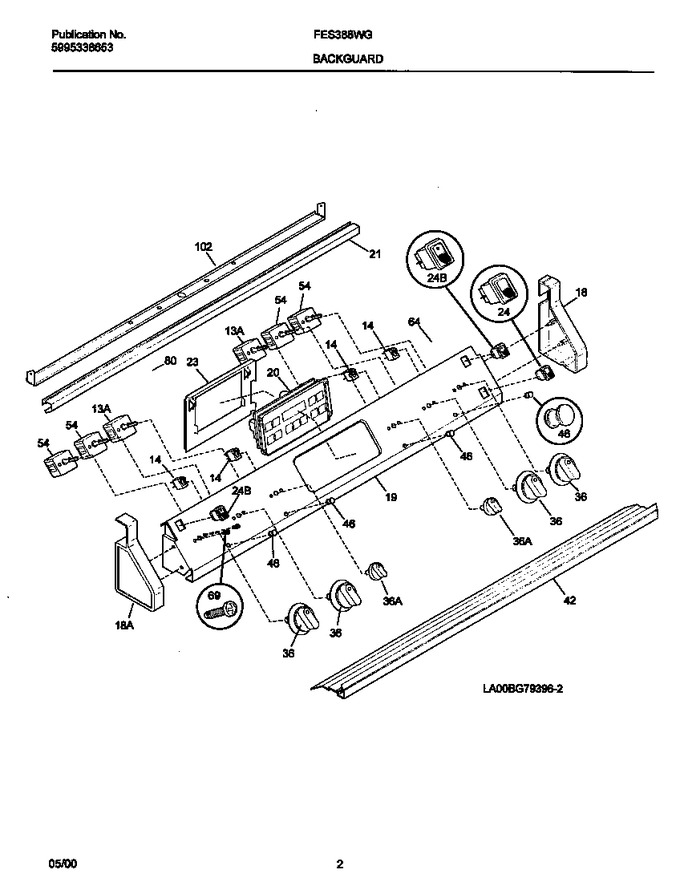

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 5304508926 | Switch-warmer, Infinite, Drawer/zone (Replaces: 316095500) |
|
Immediately | $ 84.18 | ||||
| 14 | 5303051533 | Light-lamp/indicator |
|
$ 53.81 | |||||
| 18 | 5303300161 | End Cap, Black, Lh |
|
- | |||||
| 18 | 5303300160 | End Cap, Black, Rh |
|
- | |||||
| 19 | 318005555 | Panel-control |
|
- | |||||
| 20 | 318012903 | Clock/timer,electronic |
|
- | |||||
| 21 | 318027803 | Trim,backguard ,black ,top |
|
- | |||||
| 23 | 318015020 | Bracket-clock Mtg |
|
- | |||||
| 24 | 316083100 | Switch-rocker, Dual Element, Black, Lh, (2) |
|
$ 89.31 | |||||
| 24 | 316083101 | Switch-rocker, Oven Light, Black, Rh |
|
$ 85.01 | |||||
| 36 | 318099202 | Knob,control |
|
$ 156.24 | |||||
| 36 | 318017600 | Knob-warmer |
|
$ 30.14 | |||||
| 42 | 318106927 | Trim,backguard ,black ,bottom |
|
$ 188.06 | |||||
| 46 | 318044511 | Lens-indicator Light (Replaces: 318044510) |
|
Immediately | $ 25.66 | ||||
| 54 | 5303935086 | Switch-surface Unit, (4) (Replaces: 318120503) |
|
Immediately | $ 51.95 | ||||
| 68 | 318182374 | Housing-control |
|
- | |||||
| 69 | 5303288565 | Screw, Switch Mtg., 8-32 X 3/16 (Replaces: 5303323134) |
|
$ 3.12 | |||||
| 102 | 318055601 | Bracket-mounting |
|
$ 34.13 | |||||
| *06760 | 3205110 | Clip,plate Connector |
|
- | |||||
| *06761 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *06762 | 08016432 | Screw,truss Head ,8-18 X 0.375 ,(4) |
|
- | |||||
| *06763 | 01300019EA | Cleaner, Stainless Steel (Replaces: 218490900) |
|
Immediately | $ 21.27 | ||||
| *06764 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *06765 | 5303323145 | Nut |
|
- |
