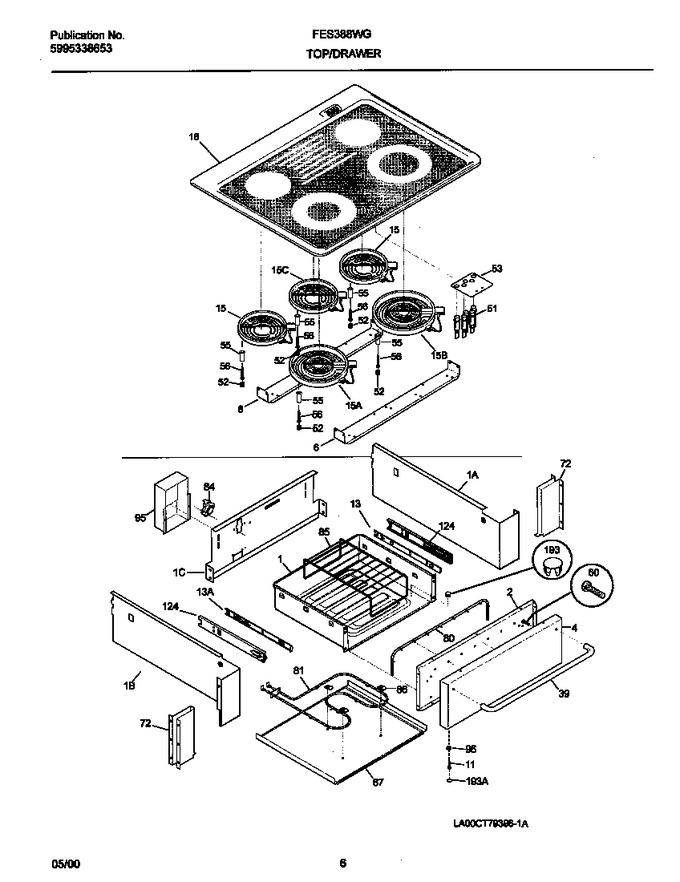

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318143330		Deflector-warmer,left Side		Appelez-nous	-
1	318143203		Deflector-warmer,rear		Appelez-nous	-
1	318142500		Drawer,warmer		Appelez-nous	-
1	318143331		Deflector-warmer,right Side		Appelez-nous	-
2	318108017		Liner,drawer		Appelez-nous	-
4	318107900		Panel-drawer, Stainless		Appelez-nous	-
6	318111102		Support-element,(2)		Appelez-nous	-
13	318259507		Glide-drawer, Inner, Lh   (Replaces: 316105601)			Immediately	$ 69.01
13	318259507		Glide-warmer,inner Rh   (Replaces: 316105602)			Immediately	$ 69.01
15	318178000		Element-surface,2100w		Appelez-nous	-
15	318198817		Element-surface,radiant ,small/6 Inch ,1200w,1200w ,smal   (Replaces: 318178100)			Immediately	$ 192.78
15	389082702		Element-surface,radiant ,dual ,2100w/1000w,limit Sw Incl   (Replaces: 318178001)				$ 284.39
15	318178103		Element-surface W-zone,120v/100w		Appelez-nous	-
16	318079523		Main Top,glass ,black		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
51	5303297484		Light-indicator, Hot Surface		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
53	318125900		Bracket-indicator Light, Hot Surface		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
60	240442708		Screw,handle Mtg ,10-32 X 1.125   (Replaces: 5304400794)				$ 8.34
72	318113402		Bracket-slide,(2)		Appelez-nous	-
80	318054300		Gasket-air Duct Cvr		Appelez-nous	-
81	316093100		Element, Warmer Drawer		Appelez-nous	-
84	318005103		Thermostat,safety				$ 159.51
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318121503		Base-warmer		Appelez-nous	-
95	318143701		Cover-wire		Appelez-nous	-
124	316105501		Glide-warmer,outer/rh & Lh ,(2)   (Replaces: 316105500)				$ 90.72
193	5304400796		Plug		Appelez-nous	-
*06784	3201899		Washer,hinge Assy		Appelez-nous	-
*06785	08002868		Screw 10 X 24 X 1/2				$ 14.18
*06786	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*06787	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*06788	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*06789	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*06790	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*06791	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*06792	5303323139		Screw,10-24 X 29/32				$ 13.46
*06793	5303323221		Washer,fiber		Appelez-nous	-
*06794	5303325174		Screw		Appelez-nous	-
*06795	5304400795		Bushing,snap-in ,nylon		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
