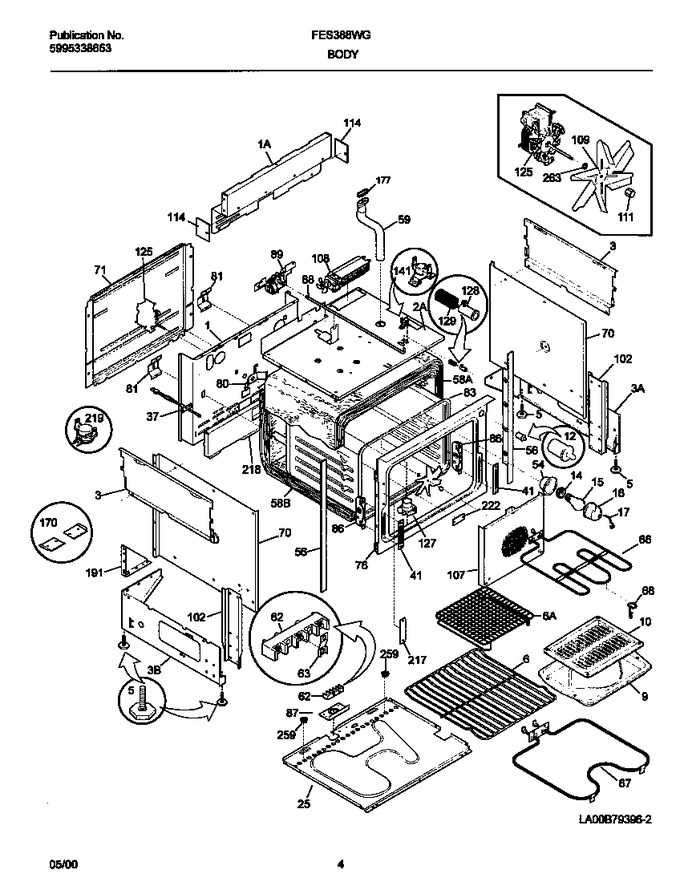

01 - Cover
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318070901 | Back-main, Upper |
|
- | |||||
| 1 | 318066402 | Back-main |
|
- | |||||
| 2 | 318108600 | Shield,oven Top |
|
- | |||||
| 3 | 5303300143 | Panel-upper Side |
|
- | |||||
| 3 | 318160004 | Panel-lower Side Rh |
|
$ 167.69 | |||||
| 3 | 318160005 | Panel-lower Side Lh |
|
- | |||||
| 5 | 318175510 | Screw-levelling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318345205 | Rack-oven (Replaces: 318025301) |
|
Immediately | $ 138.78 | ||||
| 6 | 5303311206 | Shelf ( Broiler Pan ),broiler Pan |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer Lenz |
|
- | |||||
| 25 | 318179108 | Shield-heat,lower |
|
- | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318002601 | Trim-oven Front,black |
|
- | |||||
| 58 | 5303310539 | Insulation Wrapper |
|
- | |||||
| 58 | 318132609 | Insulation |
|
- | |||||
| 59 | 318072502 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 63 | 5303310517 | Plate,ground Strap |
|
- | |||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 5303310515 | Cover-wiring |
|
$ 368.97 | |||||
| 76 | 318124100 | Front-oven |
|
- | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 5303301261 | Spring,oven |
|
- | |||||
| 83 | 318089609 | Liner-oven Assy,comp. |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 87 | 318111803 | Plate,mounting |
|
- | |||||
| 88 | 5303311160 | Rod-latch |
|
- | |||||
| 89 | 318095956 | Motor-latch (Replaces: 318095913) |
|
Immediately | $ 143.83 | ||||
| 102 | 5303311142 | Support-oven Front |
|
- | |||||
| 107 | 318119600 | Cover-fan |
|
- | |||||
| 108 | 318073001 | Motor-fan |
|
- | |||||
| 109 | 5303311203 | Fan Blade |
|
$ 42.84 | |||||
| 111 | 5303311205 | Nut-fan Retainer |
|
- | |||||
| 114 | 318175100 | Plate-filler |
|
- | |||||
| 125 | 5303311202 | Motor-convection |
|
$ 114.07 | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 141 | 5303284446 | Switch, Thermal Cutout |
|
- | |||||
| 142 | 318123901 | Deflector |
|
- | |||||
| 170 | 5304405244 | Anti-tip & Accessories |
|
$ 44.73 | |||||
| 177 | 318053800 | Gasket Vent |
|
- | |||||
| 191 | 5303304030 | Bracket Corner |
|
- | |||||
| 217 | 316042300 | Plate,warning |
|
- | |||||
| 219 | 318003400 | Thermostat-safety |
|
$ 237.43 | |||||
| 222 | 318080000 | Plate,oven Temp Probe |
|
- | |||||
| 263 | 5303322885 | Spacer |
|
- | |||||
| *06766 | 3201861 | Screw, 6 X 3/8 |
|
$ 0.76 | |||||
| *06767 | 3201899 | Washer,hinge Assy |
|
- | |||||
| *06768 | 3205110 | Clip,plate Connector |
|
- | |||||
| *06769 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *06770 | 08016432 | Screw,truss Head ,8-18 X 0.375 ,(4) |
|
- | |||||
| *06771 | 5303051099 | Nut, Hex, 10-32 |
|
- | |||||
| *06772 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *06773 | 5303300265 | Screw,8-18 X 1/2 ,chrome |
|
$ 15.17 | |||||
| *06774 | 5303307980 | Screw, 8-32 X 7/16 |
|
Immediately | $ 14.18 | ||||
| *06775 | 316205500 | Nut, Hex, 10-32 (Replaces: 5303308427) |
|
$ 11.34 | |||||
| *06776 | 5303311124 | Screw,(4) |
|
- | |||||
| *06777 | 5303311207 | Tube, Protector |
|
- | |||||
| *06778 | 5303311306 | Screw,8-18 X 0.375 |
|
- | |||||
| *06779 | 5303311528 | Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black |
|
- | |||||
| *06780 | 5303323129 | Screw,8 X 3/4 |
|
- | |||||
| *06781 | 5303323139 | Screw,10-24 X 29/32 |
|
$ 13.46 | |||||
| *06782 | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| *06783 | 318120710 | Switch-door,(2) |
|
- |
