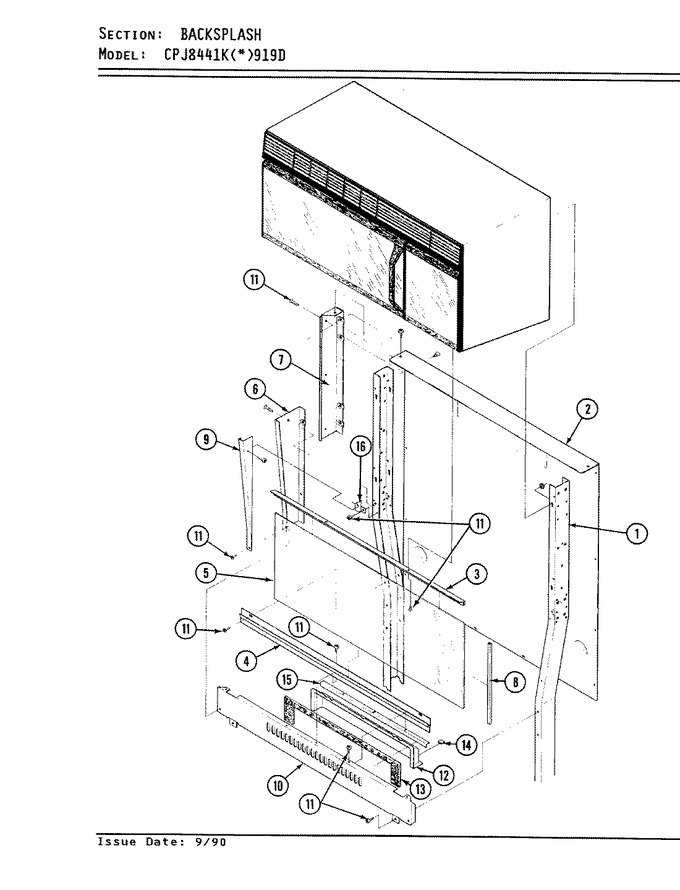

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1867272		Block	1	Appelez-nous	-
1	3818F046-51		Channel, Oven Support	1	Appelez-nous	-
2	4002F054-80		Cover, Back Wire	1	Appelez-nous	-
3	7706P165-60		Extrusion, Glass Top	1	Appelez-nous	-
4	7706P164-60		Extrusion, Glass Bot	1	Appelez-nous	-
5	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	1			$ 11.95
5	7902P147-60		Glass, Backsplash	1	Appelez-nous	-
6	2618F076-32		Panel, Side Upper (left)	1	Appelez-nous	-
6	2618F077-32		Panel, Side Upper (right)	1	Appelez-nous	-
7	2618F043-32		Panel, Side Upper Top (lt)	1	Appelez-nous	-
7	2618F044-32		Panel, Side Upper Top (rt)	1	Appelez-nous	-
8	7720P083-60		Trim, Glass Retainer	1	Appelez-nous	-
9	7720P140-60		Trim, Side Panel (left)	1	Appelez-nous	-
9	7720P141-60		Trim, Side Panel (right)	1	Appelez-nous	-
10	2620W055-81		Panel, Backguard Lower	1	Appelez-nous	-
11	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
12	4006F028-23		Box, Upper Flue	1	Appelez-nous	-
13	7201P026-60		Gasket, Flue Box	1	Appelez-nous	-
14	7104P001-60		Fastener	1	Appelez-nous	-
15	3820F008-61		Angle-retainer, Flue Box	1	Appelez-nous	-
16	3804F044-45		Bracket, Side Panel (rt)	1	Appelez-nous	-
16	3804F043-45		Bracket, Side Panel (lt)	1	Appelez-nous	-
