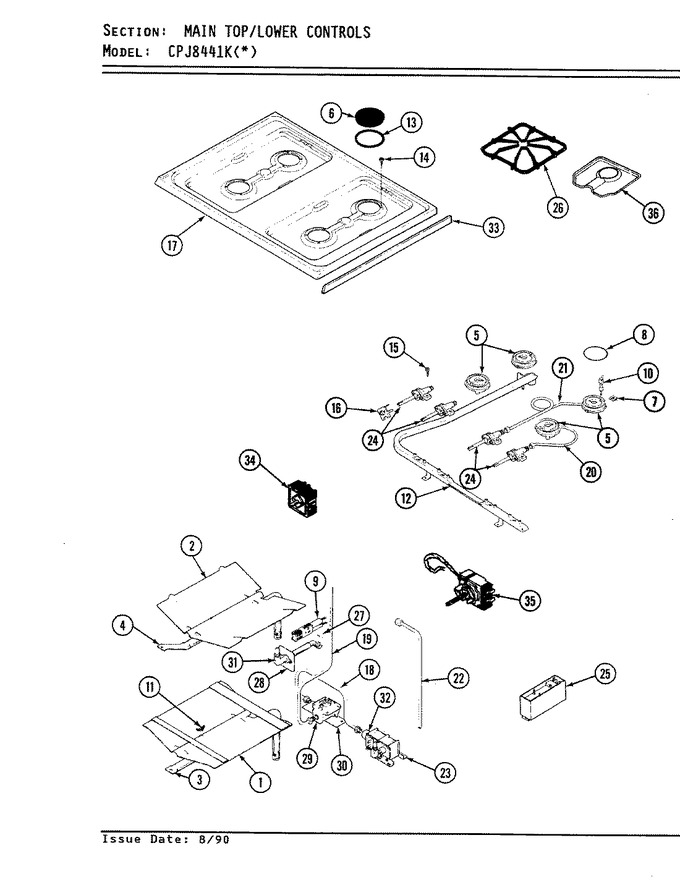

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W184-15 | Baffle | 1 |
|
- | ||||
| 2 | 3601F181-45 | Baffle, Oven Burner | 1 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 1 |
|
- | ||||
| 4 | 7505P100-60 | Burner, Bake & Broil | 1 |
|
- | ||||
| 5 | 5110A825-60 | Wire, Igniter Rear | 1 |
|
- | ||||
| 5 | 5415A015-60 | + Nat. Gas Conversion Kit | 1 |
|
- | ||||
| 5 | 5110A824-60 | Wire, Igniter Front | 1 |
|
- | ||||
| 5 | 5415A016-60 | Lp Conversion Kit | 1 |
|
- | ||||
| 5 | 7505A155-60 | Burner, Top Complete | 1 |
|
- | ||||
| 6 | 7504P007-60 | Cap, Surface Burner, Black | 1 |
|
- | ||||
| 7 | 7112P072-60 | Clip | 1 |
|
- | ||||
| 8 | 7201P037-60 | Gasket, Burner | 1 |
|
- | ||||
| 9 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 1 |
|
Immediately | $ 60.44 | |||
| 10 | 7432P053-60 | Igniter, Burner | 1 |
|
- | ||||
| 11 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 12 | 7513P093-60 | Manifold Pipe | 1 |
|
- | ||||
| 13 | 2014F001-00 | Ring, Black | 1 |
|
- | ||||
| 14 | 7101P256-60 | Screw | 1 |
|
- | ||||
| 15 | 7101P043-60 | Screw, Control Valve | 1 |
|
- | ||||
| 16 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 1 |
|
$ 118.82 | ||||
| 17 | 2001F063-81 | Top, Main White | 1 |
|
- | ||||
| 18 | 7506P117-60 | Tubing Regulator | 1 |
|
- | ||||
| 19 | 7506P101-60 | Tube, Manifold Feed----na | 1 |
|
- | ||||
| 20 | 7506P076-60 | Tube, Front Burner | 1 |
|
- | ||||
| 21 | 7506P077-60 | Tube, Rear Burner | 1 |
|
- | ||||
| 22 | 7506P092-60 | Tube, Manifold | 1 |
|
- | ||||
| 23 | 7501P034-60 | Valve, Broil & Bake | 1 |
|
- | ||||
| 24 | 7502P100-60 | Valve, Top Burner | 1 |
|
- | ||||
| 24 | 7214P003-60 | Sleeve | 1 |
|
- | ||||
| 25 | 7431P016-60 | Module, Spark | 1 |
|
- | ||||
| 25 | 3801F205-45 | Bracket, Module Support | 1 |
|
- | ||||
| 26 | 7518P014-60 | Grate, Black | 1 |
|
- | ||||
| 27 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 1 |
|
$ 4.29 | ||||
| 28 | 3605F019-45 | Plate, Fitting | 1 |
|
- | ||||
| 29 | 7510P028-60 | Regulator, Pressure | 1 |
|
- | ||||
| 30 | 3801F191-45 | Bracket, Regulator Mtg | 1 |
|
- | ||||
| 31 | 7507P028-60 | Fitting, Broil Burner | 1 |
|
- | ||||
| 32 | 1555251 | Nut, Loxit (3/8``) | 1 |
|
- | ||||
| 33 | 7746P025-60 | Trim, Main Top (left) | 1 |
|
- | ||||
| 33 | 7746P026-60 | Trim, Main Top (right) | 1 |
|
- | ||||
| 33 | M0282009 | Nut (Replaces: 7103P064-60) | 1 |
|
$ 12.06 | ||||
| 33 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 1 |
|
$ 6.77 | ||||
| 34 | 7101P279-60 | Screw W/washer | 1 |
|
- | ||||
| 34 | 7403P092-60 | Switch, Selector | 1 |
|
- | ||||
| 35 | 7515P020-60 | Thermostat, Ov | 1 |
|
- | ||||
| 35 | 7101P125-60 | Screw, Thermostat | 1 |
|
- | ||||
| 36 | 1430283 | Bowl, Drip Tray (Replaces: 7725P016-60) | 1 |
|
$ 95.86 |
