01 - Base & Cavity (microwave)


02 - Body


03 - Control Panel

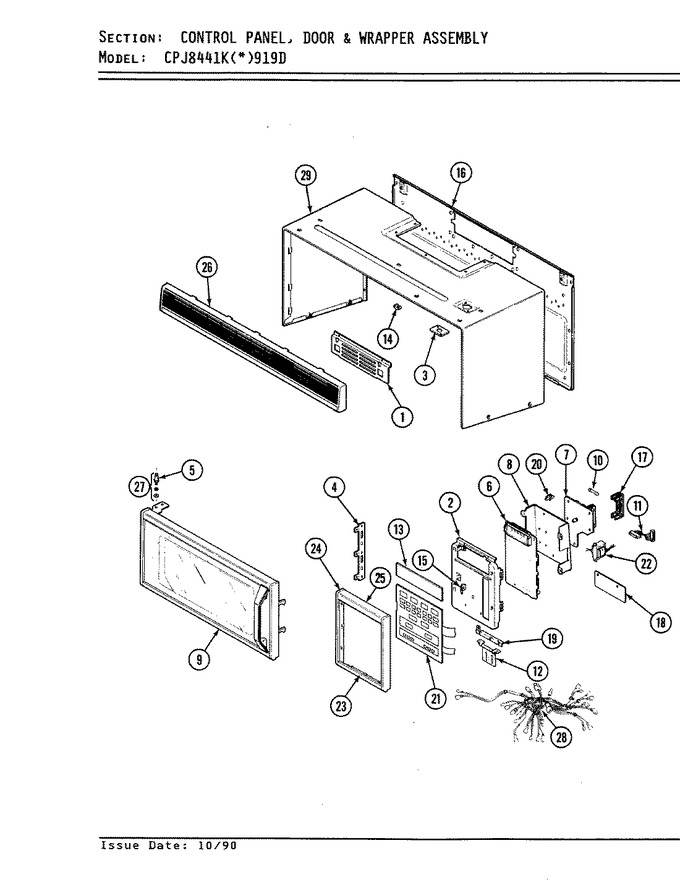

04 - Control Pnl, Door & Wrapper (microwave)


05 - Lower Door/drawer


06 - Main Top & Lower Controls


07 - Manifold Panel/burner Box


08 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2080-0003		Damper	1	Appelez-nous	-
2	2145-0051		Bracket, Control Panel	1	Appelez-nous	-
3	2145-0043		Bracket, Cord	1	Appelez-nous	-
4	2145-0045		Bracket, Panel	1	Appelez-nous	-
5	3005-0112		Bolt	1	Appelez-nous	-
6	2125-0004		Control - Display	1	Appelez-nous	-
7	2125-0005		Board	1	Appelez-nous	-
8	2275-0028		Cover, Control Panel	1	Appelez-nous	-
8	WPW10068250		Screw   (Replaces: 3105-0171)	1			$ 3.66
9	05200019		Door Assy White	1	Appelez-nous	-
10	Y01050005		Fuse 15a 125v	1	Appelez-nous	-
11	2512-0001		Harness	1	Appelez-nous	-
12	2520-0010		Hinge Assembly	1	Appelez-nous	-
12	Y05200044		Screw	1	Appelez-nous	-
13	2655-0007		Lens	1	Appelez-nous	-
14	2735-0024		Nut	1	Appelez-nous	-
15	2845-0022		Plate, Ground	1	Appelez-nous	-
16	2845-0021		Plate, Mounting	1	Appelez-nous	-
17	3030-0002		Shield, Pcb	1	Appelez-nous	-
18	3030-0008		Shield, Condenser	1	Appelez-nous	-
19	3130-0016		Support	1	Appelez-nous	-
20	3065-0007		Spacer Pcb	1	Appelez-nous	-
21	05200133		Switch, Membrane	1	Appelez-nous	-
22	3215-0014		Transformer	1	Appelez-nous	-
23	05200013		Trim Panel Wht	1	Appelez-nous	-
24	05200132		Trim, Control Panel	1	Appelez-nous	-
25	Y05200027		Trim Panel Upper Wht	1	Appelez-nous	-
26	3005-0111		Screw	1	Appelez-nous	-
26	05200011		Grill Assy Wht	1	Appelez-nous	-
27	3280-0040		Washer	1	Appelez-nous	-
28	05200002		Wiring Harness	1	Appelez-nous	-
29	05200003		Outer Case Wht	1	Appelez-nous	-
