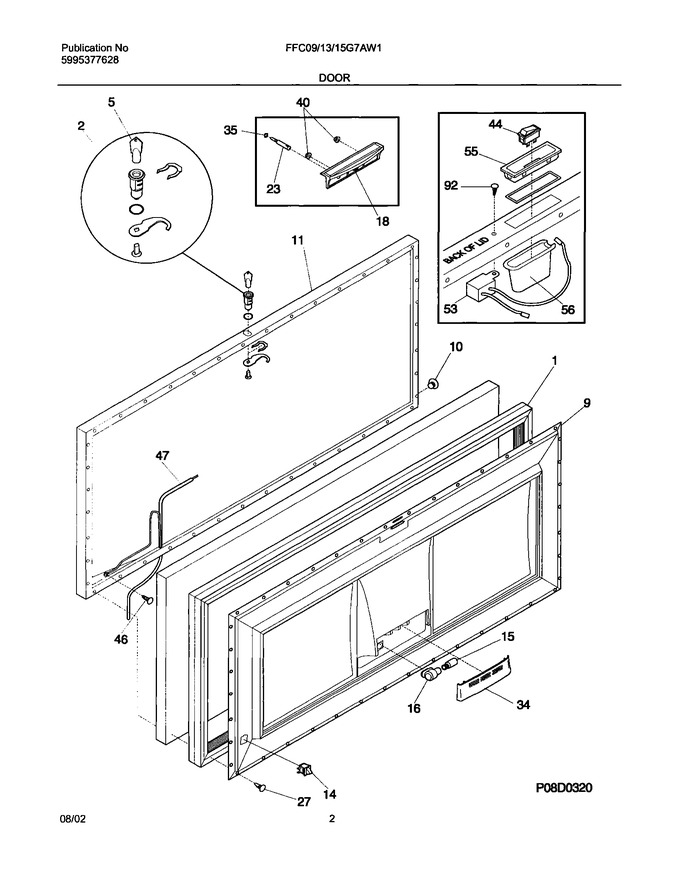

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481101		Gasket-door, White				$ 224.81
2	5303925107		Lock Assy		Appelez-nous	-
9	216828904		Panel-lid				$ 171.31
10	216141101		Plug Button, White				$ 2.57
11	216129823		Lid,white		Appelez-nous	-
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216205004		Handle,white		Appelez-nous	-
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
34	5303296969		Shield-light		Appelez-nous	-
35	5303297015		Washer, Signal Light		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
44	216823300		Switch-rocker				$ 47.15
53	216713600		Buzzer,alarm		Appelez-nous	-
55	216164000		Housing, Switch		Appelez-nous	-
56	216694200		Cap,sig Light Seal		Appelez-nous	-
F47	216792400		Harness-lid		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation				$ 330.91
NI	5309948955		Clip-panel				$ 11.53
