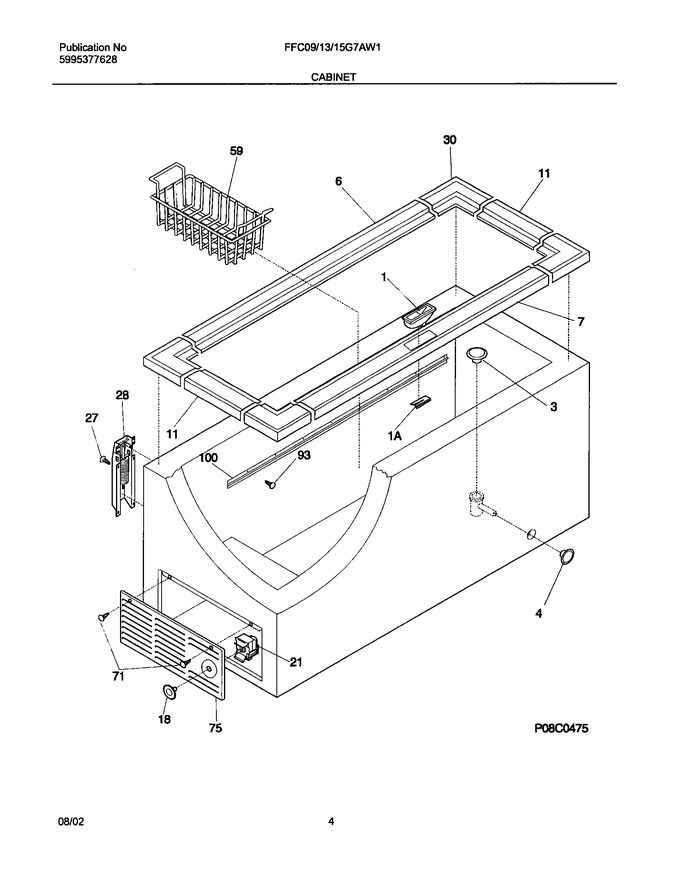

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303208488		Latch, Door		Appelez-nous	-
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	216073905		Plug-drain,exterior		Appelez-nous	-
6	216110900		Breaker		Appelez-nous	-
7	216111500		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
27	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
28	216039600		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
59	216080300		Basket		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216034301		Panel-access, White				$ 103.01
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
100	216081500		Track,basket		Appelez-nous	-
1A	216818900		Support-lock				$ 12.65
F21	216714700		Control-temperature		Appelez-nous	-
NI	216080700		Basket-lower (2)				$ 84.70
NI	216269500		Adapter, Drain Hose				$ 14.81
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
