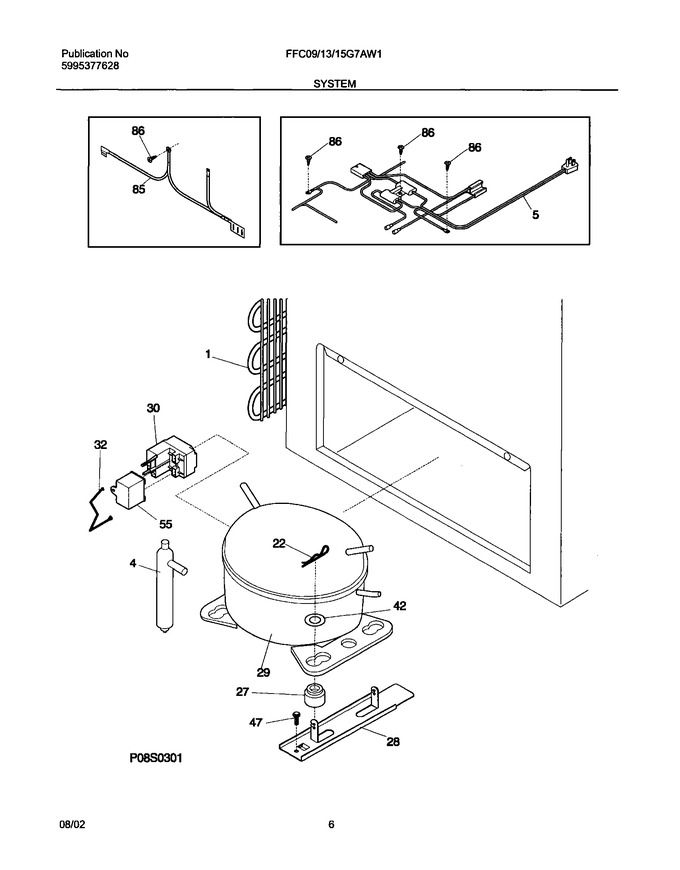

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
22	216056400		Clip, Spring Mtg		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5303212615		Support, Compressor		Appelez-nous	-
30	5304491584		Controller,compressor   (Replaces: 216649313)			Immediately	$ 101.35
32	216649200		Clip,controller				$ 6.30
42	216232700		Washer-flat		Appelez-nous	-
47	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
85	216533500		Wire,ground		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
F1	5303925238		Condenser				$ 467.78
F29	216784300		Compressor,w/o Electricals		Appelez-nous	-
F5	216792500		Harness,electrical		Appelez-nous	-
F55	218909912		Capacitor,run ,50/60 Hz ,220 Vac ,12 Microfarad   (Replaces: 216787800)			Immediately	$ 74.75
NI	5303212614		Clip Harness				$ 2.88
