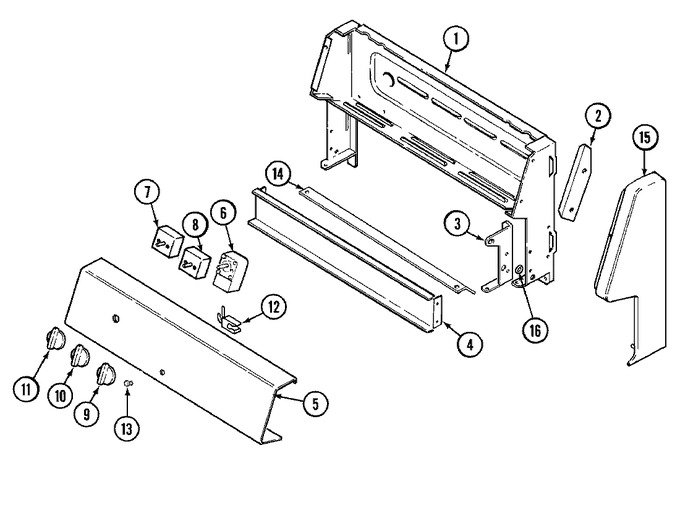

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4001F091-51		Housing, Control Panel	30	Appelez-nous	-
2	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	30		Immediately	$ 12.62
2	3807F449-45		Support, Control Pnl (rt)	30	Appelez-nous	-
2	3807F450-45		Support, Control Pnl (lt)	30	Appelez-nous	-
3	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	30		Immediately	$ 12.62
3	3418D097-60		Hinge, Main Top (lt)	30	Appelez-nous	-
3	3418D098-60		Hinge, Main Top (rt)	30	Appelez-nous	-
4	3802F088-51		Brace, Control Panel	30	Appelez-nous	-
5	4876S065-59		Panel, Control	30	Appelez-nous	-
6	7404P105-60		Thermostat	30			$ 208.86
7	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	30		Immediately	$ 35.10
7	WP7101P309-60		Screw   (Replaces: 7101P309-60)	30		Immediately	$ 6.26
7	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	30		Immediately	$ 57.78
8	WP7403P255-60		Switch, Selector   (Replaces: 7403P255-60)	30			$ 131.41
9	7735P037-60		Knob, Thermostat (blk)----na	30	Appelez-nous	-
10	7739P043-60		Knob, Selector (blk)	30	Appelez-nous	-
11	7737P035-60		Knob, Infinite (blk)	30	Appelez-nous	-
12	W10852510		Light, Indicator   (Replaces: 7407P102-60)	30			$ 106.11
13	W11690131		Lens, Indicator Light   (Replaces: 7730P012-60)	30			$ 6.73
14	3604F201-80		Shield, Sight	30	Appelez-nous	-
15	7726P052-60		End Cap (lt-blk)	30	Appelez-nous	-
15	7101P317-60		Screw	30	Appelez-nous	-
15	7726P051-60		End Cap (rt-blk)	30	Appelez-nous	-
16	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	30			$ 7.68
NI	5170D119-60		Harness, Control Panel	30	Appelez-nous	-
NI	5125A316-60		Harness, Loose Wire	30	Appelez-nous	-
NI	8113P023-60		Manual, Use & Care	30	Appelez-nous	-
NI	16002079		Guide, Quick Ref - Admiral	30	Appelez-nous	-
