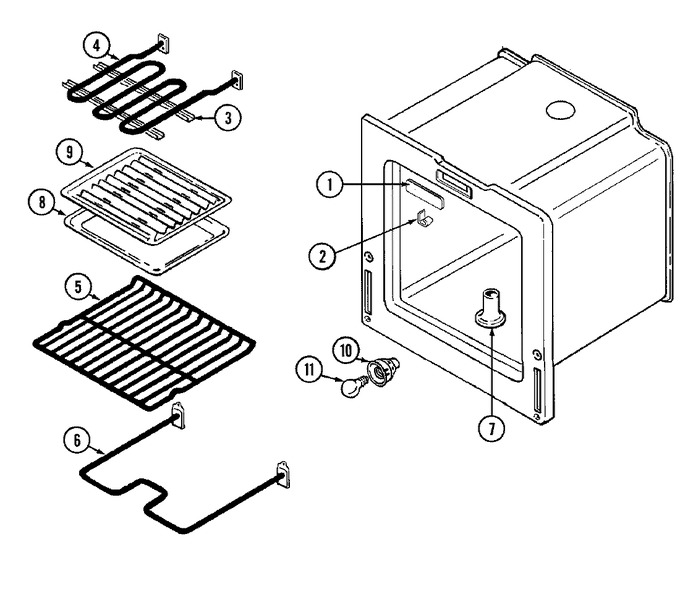

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8114P335-60 | Cover, Lock Slot | 30 |
|
- | ||||
| 2 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 30 |
|
Immediately | $ 11.07 | |||
| 3 | 3807F389-45 | Support, Element | 30 |
|
- | ||||
| 3 | W11233072 | Screw (Replaces: 7101P290-60) | 30 |
|
Immediately | $ 12.62 | |||
| 4 | Y04000057 | Element, Broil | 30 |
|
$ 94.48 | ||||
| 5 | WPW10282492 | Rack, Oven (Replaces: 7801P047-60) | 30 |
|
Immediately | $ 65.15 | |||
| 6 | WP74003019 | Element, Bake (Replaces: Y04000058) | 30 |
|
Immediately | $ 51.10 | |||
| 6 | W11233072 | Screw (Replaces: 7101P290-60) | 30 |
|
Immediately | $ 12.62 | |||
| 7 | 8026P019-60 | Tube, Vent | 30 |
|
- | ||||
| 8 | Y3401F02019 | Pan, Broil | 30 |
|
- | ||||
| 9 | Y3413F01619 | Insert, Broil Pan | 30 |
|
- | ||||
| 10 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 30 |
|
Immediately | $ 66.10 | |||
| 11 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 30 |
|
Immediately | $ 16.80 |
