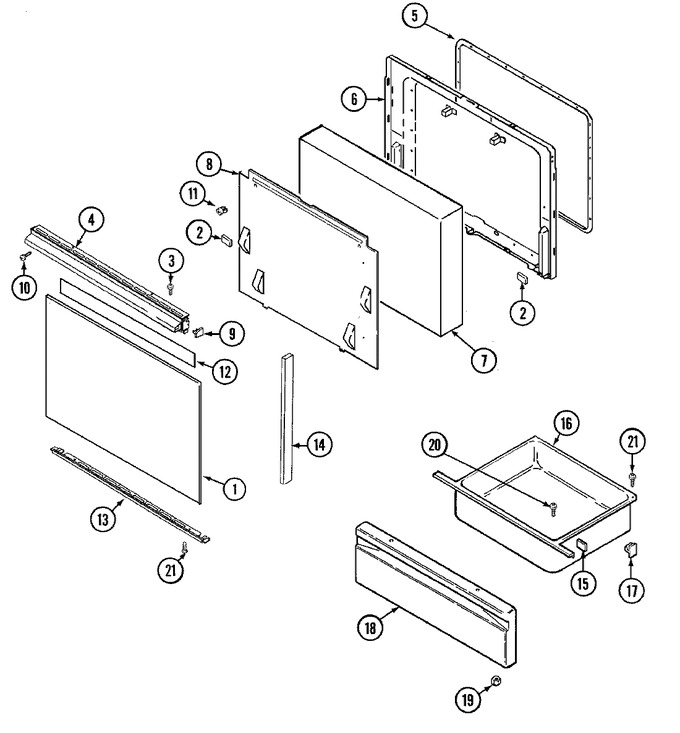

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P325-60 | Glass, Door (outer-blk) | 30 |
|
- | ||||
| 2 | 8010P085-60 | Spacer, Rubber | 30 |
|
- | ||||
| 3 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 30 |
|
$ 15.94 | ||||
| 4 | 7701P103-60 | Handle, Door (blk) | 30 |
|
- | ||||
| 5 | WP7212P043-60 | Seal, Silicone (Replaces: 7212P034-60) | 30 |
|
Immediately | $ 56.83 | |||
| 6 | 2402W211-19 | Lining, Door | 30 |
|
- | ||||
| 7 | 4804F050-60 | Insulation, Door 2`` | 30 |
|
- | ||||
| 8 | 3601F218-45 | Baffle, Door | 30 |
|
- | ||||
| 9 | 7744P076-60 | End Cap (lt) | 30 |
|
- | ||||
| 9 | 7744P075-60 | End Cap (rt) | 30 |
|
- | ||||
| 10 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 30 |
|
Immediately | $ 7.69 | |||
| 11 | 7103P045-60 | Nut, Nylon | 30 |
|
- | ||||
| 12 | 8270P090-60 | Tape, Foil (3`` Wide) | 30 |
|
- | ||||
| 13 | 7744P105-60 | Trim, Bottom (blk)----na | 30 |
|
- | ||||
| 14 | 7744P055-60 | End Cap, Oven Door (blk) | 30 |
|
- | ||||
| 15 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 30 |
|
$ 11.95 | ||||
| 16 | 3405F015-80 | Drawer, Storage | 30 |
|
- | ||||
| 17 | 8004P026-60 | Support, Drawer (rear) | 30 |
|
$ 9.29 | ||||
| 18 | 2416F039-64 | Panel, Drawer (alm) | 30 |
|
- | ||||
| 19 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 30 |
|
$ 4.00 | ||||
| 20 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 30 |
|
$ 6.77 | ||||
| 21 | W11233072 | Screw (Replaces: 7101P290-60) | 30 |
|
Immediately | $ 12.62 |
