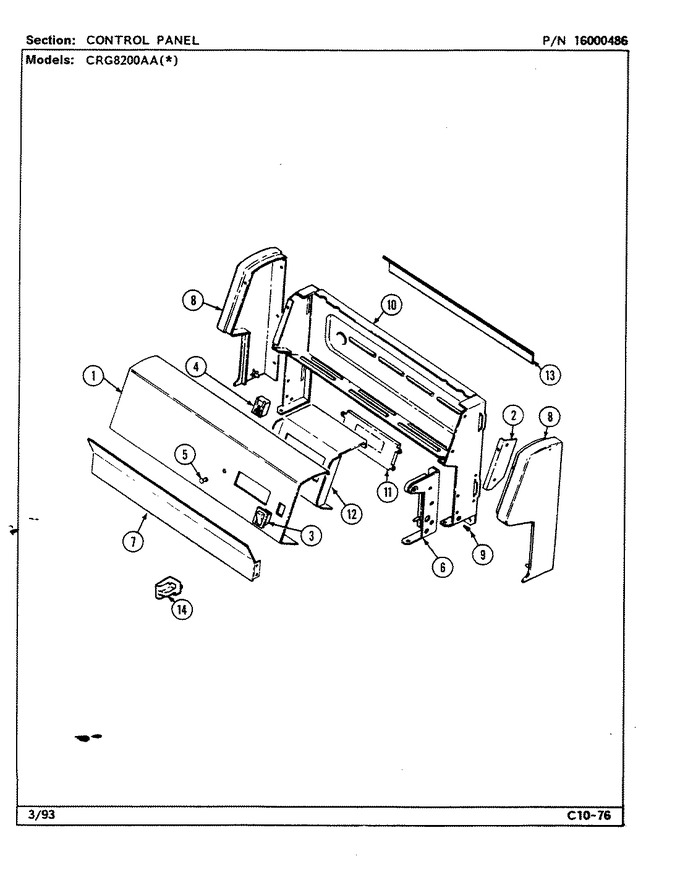

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7703P546-60		Panel, Control	10	Appelez-nous	-
1	7703P669-60		Panel, Control	24	Appelez-nous	-
2	3807F449-45		Support, Control Pnl (rt)	10	Appelez-nous	-
2	3807F450-45		Support, Control Pnl (lt)	10	Appelez-nous	-
3	7403P242-60		Switch, Light	10	Appelez-nous	-
4	7407P100-60		Light, Indicator	12	Appelez-nous	-
4	7407P076-60		Light, Indicator	10	Appelez-nous	-
5	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P010-60)	10			$ 5.16
5	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	12			$ 5.16
6	3807F423-51		Support, Housing (rt)	10	Appelez-nous	-
6	3807F424-51		Support, Housing (lt)	10	Appelez-nous	-
6	8114P348-60		Cover, Hinge Support	10	Appelez-nous	-
7	3604F188-09		Shield, Flue	10	Appelez-nous	-
8	7726P062-60		End Cap (lt-blk)	10	Appelez-nous	-
8	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	10			$ 7.68
8	7726P061-60		End Cap (rt-blk)	10	Appelez-nous	-
9	W11233072		Screw, Housing   (Replaces: 7118P015-60)	10		Immediately	$ 12.62
10	4001F097-51		Housing, Control Panel	10	Appelez-nous	-
11	7602P121-60		Clock (blk)	24	Appelez-nous	-
11	7602P113-60		Clock	10	Appelez-nous	-
11	7101P293-60		Screw	10	Appelez-nous	-
12	3801F346-51		Bracket	24	Appelez-nous	-
12	3801F274-45		Bracket, Clock	10	Appelez-nous	-
13	8036P001-60		Shield	10	Appelez-nous	-
14	8010P083-60		Spacer	10	Appelez-nous	-
NI	5180D154-60		Harness, Control Panel	10	Appelez-nous	-
NI	16000327		Guide, Quick Ref. - Maytag	10	Appelez-nous	-
NI	8111P009-60		Manual, Use & Care	10	Appelez-nous	-
