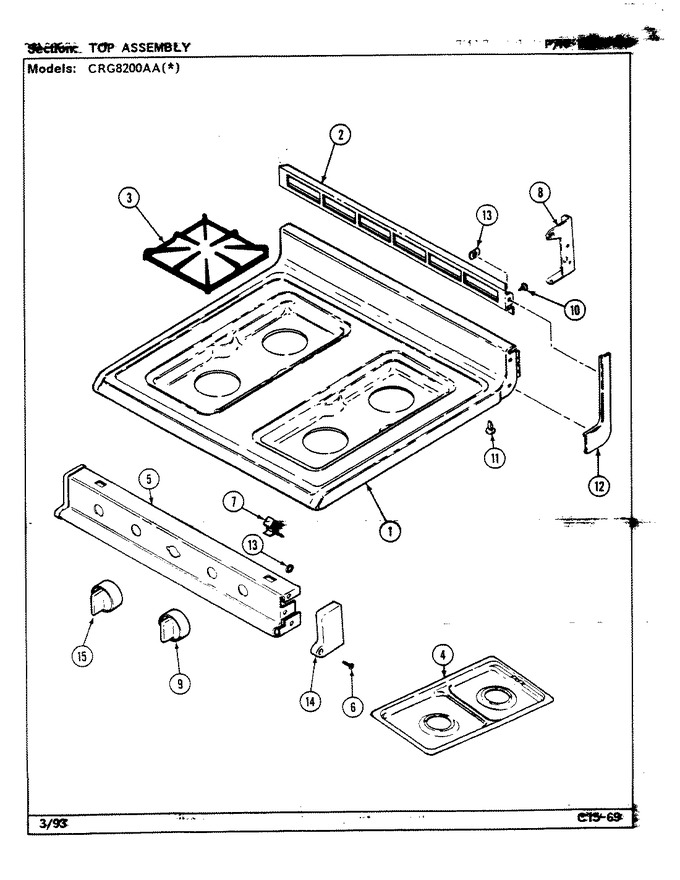

01 - Body/oven
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W082-84 | Top, Main (alm) | 10 |
|
- | ||||
| 1 | 3807F431-45 | Support, Main Top | 10 |
|
- | ||||
| 1 | 2001W082-81 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 3608F042-09 | Trim, Vent (blk) | 10 |
|
- | ||||
| 3 | 2003W023-00 | Grate (blk) | 10 |
|
- | ||||
| 3 | 2003W027-00 | Grate (blk) | 11 |
|
- | ||||
| 4 | 5401A452-60 | Drip Bowl Kit (accessory) | 10 |
|
- | ||||
| 5 | 7712P181-60 | Panel, Manifold | 10 |
|
- | ||||
| 6 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 10 |
|
$ 6.98 | ||||
| 7 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 8 | 3807F423-51 | Support, Housing (rt) | 10 |
|
- | ||||
| 8 | 3807F424-51 | Support, Housing (lt) | 10 |
|
- | ||||
| 8 | 8114P348-60 | Cover, Hinge Support | 10 |
|
- | ||||
| 9 | 7733P098-60 | Knob, Valve | 16 |
|
- | ||||
| 9 | 7733P095-60 | Knob, Valve | 10 |
|
- | ||||
| 10 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 11 | 8016P013-60 | Glide | 10 |
|
- | ||||
| 12 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 12 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 12 | 8270P095-60 | Tape, Double Sided | 10 |
|
- | ||||
| 12 | 7112P092-60 | Clip, Spring Grip | 10 |
|
- | ||||
| 13 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 14 | 7744P109-60 | End Cap, Manifold (lt-blk) | 10 |
|
- | ||||
| 14 | 7744P108-60 | End Cap, Manifold (rt-blk) | 10 |
|
- | ||||
| 15 | 7731P106-60 | Knob, Thermostat (blk) | 16 |
|
- | ||||
| 15 | 7731P099-60 | Knob, Thermostat | 10 |
|
- |
