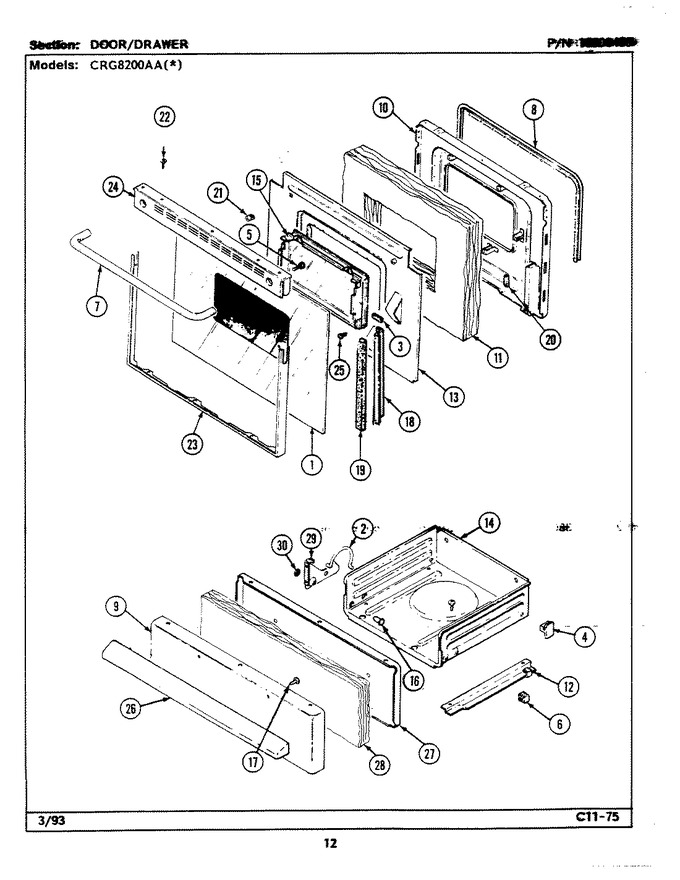

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P361-60		Glass, Door (outer/blk)	10	Appelez-nous	-
2	7803P064-60		Spring, Hinge (lt)	10	Appelez-nous	-
2	7803P065-60		Spring, Hinge (rt)	10	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
4	8004P026-60		Support, Drawer (rear)	10			$ 9.29
5	7101P326-60		Screw	10	Appelez-nous	-
6	8016P011-60		Glide, Drawer	10	Appelez-nous	-
7	7701P127-60		Handle, Oven Door (blk)	10	Appelez-nous	-
8	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
9	2403F028-71		Panel, Drawer (wht)	10	Appelez-nous	-
10	7103P136-60		Nut, Snap	10	Appelez-nous	-
10	2402W203-19		Lining, Door	10	Appelez-nous	-
11	4804F033-60		Insulation, Door	10	Appelez-nous	-
12	3404F023-51		Track, Drawer (rt)	10	Appelez-nous	-
12	3404F022-51		Track, Drawer (lt)	10	Appelez-nous	-
13	3601F232-45		Baffle, Door	10	Appelez-nous	-
14	3407F012-19		Drawer, Broiler	10	Appelez-nous	-
15	7907P016-60		Window Asy.	10	Appelez-nous	-
16	7113P012-60		Pin, Broiler Hinge	10	Appelez-nous	-
17	74002481		Screw, Handle   (Replaces: 7101P283-60)	10			$ 5.82
18	3818F052-51		Channel, Air	10	Appelez-nous	-
19	7208P002-60		Seal	10	Appelez-nous	-
20	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	10			$ 11.95
21	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
21	7103P045-60		Nut, Nylon	10	Appelez-nous	-
22	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
23	7101P321-60		Screw	10	Appelez-nous	-
23	7706P293-60		Frame, Door (stnls)	10	Appelez-nous	-
24	7744P088-60		Trim, Top	10	Appelez-nous	-
25	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
26	7701P119-60		Handle, Door (blk)	10	Appelez-nous	-
29	3418F080-51		Hinge, Drawer (rt)	10	Appelez-nous	-
29	3418F079-51		Hinge, Drawer (lt)	10	Appelez-nous	-
30	7103P022-60		Nut, Grip	10	Appelez-nous	-
