01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Gas Controls (serial Prefix 17)
06 - Oven/base
07 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

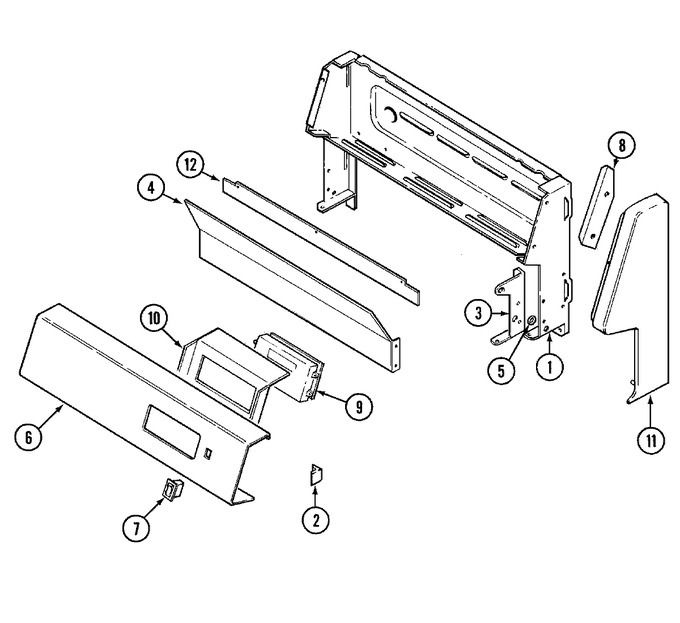

| 1 | 4001F093-51 | Housing, Control Panel | 10 |
|
- | ||||
| 1 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 8010P083-60 | Spacer | 10 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 3 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 3418A088-34 | Hinge, Main Top (lt) | 10 |
|
- | ||||
| 3 | 3418A087-34 | Hinge, Main Top (rt) | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 3604F188-09 | Shield, Flue | 10 |
|
- | ||||
| 5 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 6 | W11233072 | Screw (Replaces: 7118P018-60) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 7703P549-60 | Panel, Control | 10 |
|
- | ||||
| 7 | 7403P309-60 | Switch, Rocker (blk) | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 3807F449-45 | Support, Control Pnl (rt) | 10 |
|
- | ||||
| 8 | 3807F450-45 | Support, Control Pnl (lt) | 10 |
|
- | ||||
| 9 | 7601P222-60CP | Clock (Replaces: 7601P222-60) | 10 |
|
- | ||||
| 10 | 3801F275-45 | Bracket, Clock | 10 |
|
- | ||||
| 10 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 11 | 7726P062-60 | End Cap (lt-blk) | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 7726P061-60 | End Cap (rt-blk) | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 8036P001-60 | Shield | 10 |
|
- | ||||
| NI | 5180D152-60 | Harness, Control Panel | 10 |
|
- | ||||
| NI | 5125A355-60 | Wires, Loose | 10 |
|
- | ||||
| NI | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P475-60) | 10 |
|
$ 12.13 | ||||
| NI | 8111P033-60 | Manual, Use & Care | 17 |
|
- | ||||
| NI | 8111P007-60 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
