View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Gas Controls (serial Prefix 17)
06 - Oven/base
07 - Top Assembly
SELECT A DIAGRAM
New Model Search:

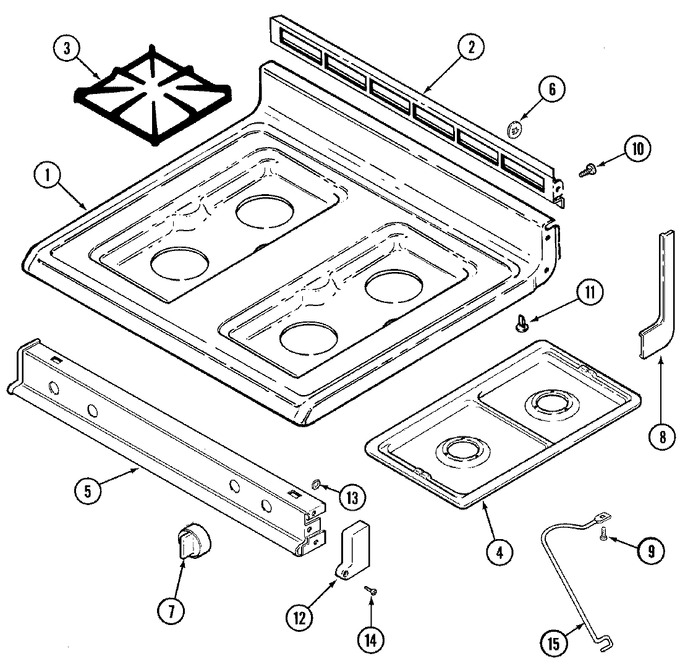

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W081-81 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 3608F042-09 | Trim, Vent (blk) | 10 |
|
- | ||||
| 3 | 2003W023-00 | Grate (blk) | 10 |
|
- | ||||
| 3 | 2003W027-00 | Grate (blk) | 11 |
|
- | ||||
| 4 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 10 |
|
$ 95.86 | ||||
| 5 | 7712P175-60 | Panel, Manifold | 10 |
|
- | ||||
| 6 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 10 |
|
$ 7.68 | ||||
| 7 | 7733P095-60 | Knob, Valve | 10 |
|
- | ||||
| 7 | 7733P098-60 | Knob, Valve | 14 |
|
- | ||||
| 7 | 7733P099-60 | Knob, Valve (blk) | 17 |
|
$ 25.55 | ||||
| 8 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 8 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 9 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 10 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 11 | 8016P013-60 | Glide | 10 |
|
- | ||||
| 12 | 7744P108-60 | End Cap, Manifold (rt-blk) | 10 |
|
- | ||||
| 12 | 7744P109-60 | End Cap, Manifold (lt-blk) | 10 |
|
- | ||||
| 13 | 7112P092-60 | Clip, Spring Grip | 10 |
|
- | ||||
| 14 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 15 | 7809P014-60 | Support, Prop | 10 |
|
- |
