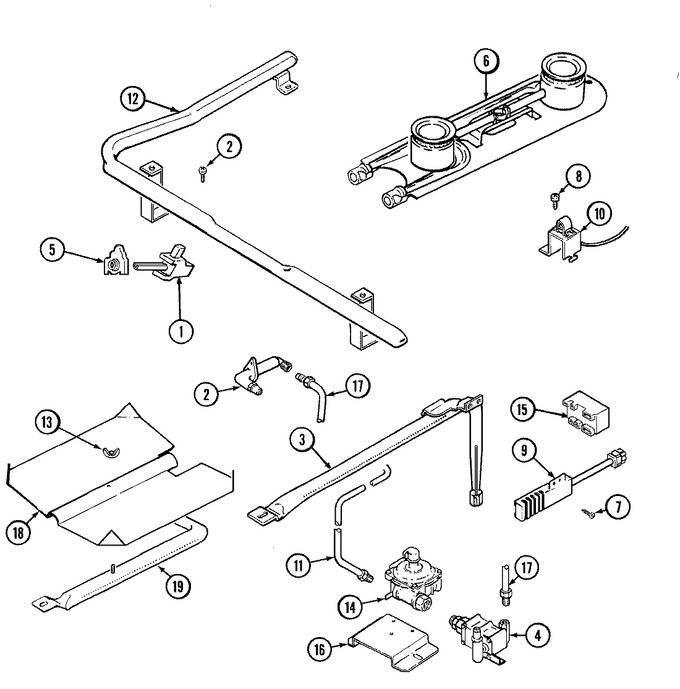

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P044-60		Screw, Valve	17	Appelez-nous	-
1	7502P265-60		Valve, Top Burner	17	Appelez-nous	-
2	7507P088-60		Fitting, Broil Burner	17	Appelez-nous	-
2	3605F186-45		Plate, Fitting	17	Appelez-nous	-
3	3403D043-45		Burner, Bake	17	Appelez-nous	-
3	3807F446-45		Support, Burner	17	Appelez-nous	-
4	WP74006427		Valve, Oven   (Replaces: 7501P097-60)	17			$ 313.44
5	WP7403P287-60		Switch, Igniter   (Replaces: 7403P287-60)	17			$ 130.75
6	3412A004-19		Burner, Top	17	Appelez-nous	-
7	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	17			$ 4.29
8	W11233072		Screw, Housing   (Replaces: 7118P015-60)	17		Immediately	$ 12.62
9	12400035		Igniter, Oven   (Replaces: 7432P076-60)	17		Immediately	$ 60.44
10	7432P031-60		Igniter, Top (rt)	17	Appelez-nous	-
10	7432P008-60		Igniter, Top (lt)	17	Appelez-nous	-
11	3414F103-44		Tubing, Regulator/pipe (3/8``)	17	Appelez-nous	-
12	7513P105-60		Pipe, Manifold	17	Appelez-nous	-
12	7103P130-60		Nut, Loxit (3/8``)	17			$ 8.20
13	7103P030-60		Nut, Wing	17			$ 6.37
14	WP74006429		Regulator, Pressure W/fitting   (Replaces: 7510P050-60)	17			$ 282.77
14	W11233072		Screw   (Replaces: 7101P290-60)	17		Immediately	$ 12.62
15	3807F432-45		Support, Spark Module	17	Appelez-nous	-
15	7431P006-60		Module, Spark	17	Appelez-nous	-
16	8020P007-60		Bracket, Regulator	17	Appelez-nous	-
17	3414F102-44		Tubing, Broil Burner (3/8``)	17	Appelez-nous	-
18	3601F217-45		Baffle, Broil	17	Appelez-nous	-
19	3403D024-45		Burner, Broil	17	Appelez-nous	-
NI	5125A312-60		Harness, Loose/burner Box	17	Appelez-nous	-
NI	5195D111-60		Harness	17	Appelez-nous	-
