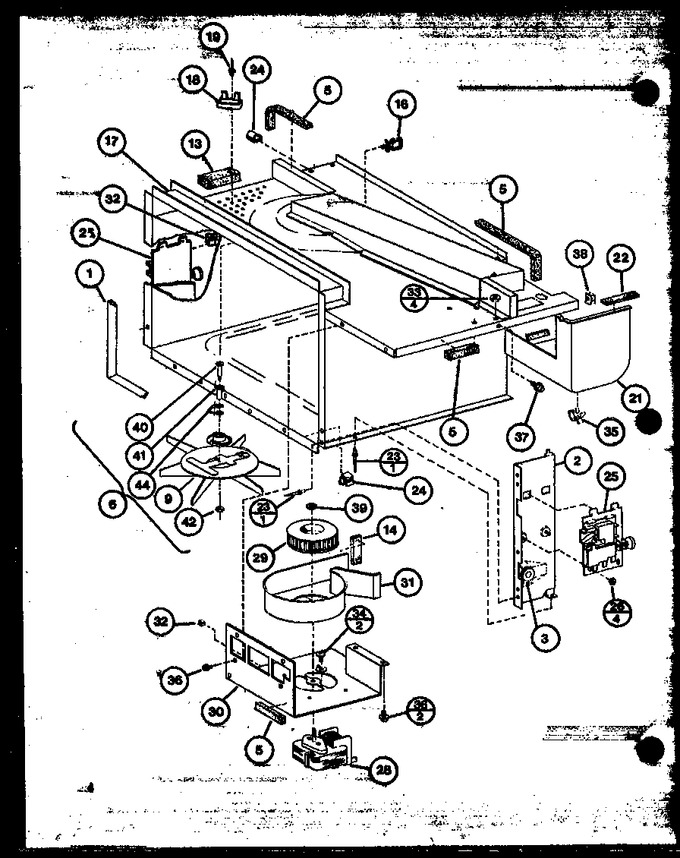

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8882101		Gasket, Oven Cavity		Appelez-nous	-
2	C8889601		Latch Bracket Lh Assy		Appelez-nous	-
2	C8889602		Latch Bracket Rh Assy		Appelez-nous	-
3	R0157146		Door Kit-chute		Appelez-nous	-
5	A3030303		Gasket (per Foot)		Appelez-nous	-
6	C8934801		Antenna Assembly		Appelez-nous	-
9	D7606301		Bushing Antenna A		Appelez-nous	-
13	A3263901		Gasket		Appelez-nous	-
14	A3030308		Gasket		Appelez-nous	-
16	B5667303		Clip		Appelez-nous	-
17	D7350521		Oven Weld		Appelez-nous	-
18	B5795304		Fuse, Thermal		Appelez-nous	-
19	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
21	D7702601		Cover		Appelez-nous	-
22	A3030309		Gasket (per Foot)		Appelez-nous	-
23	A4539601		Pop Rivet		Appelez-nous	-
24	M0118801		Clip		Appelez-nous	-
25	C8889904		Switch, Interlock		Appelez-nous	-
25	C8889905		Switch, Interlock		Appelez-nous	-
26	M0282005		Nut K				$ 7.07
28	C8793201		Motor		Appelez-nous	-
29	C8793501		Blower Wheel		Appelez-nous	-
30	D7533302		Mtg Plate		Appelez-nous	-
31	D7609401		Scroll		Appelez-nous	-
32	M0110508		Clip		Appelez-nous	-
33	M0282801		Lock-nut---k		Appelez-nous	-
34	WP3400094		Screw   (Replaces: M0258055)				$ 7.14
35	M0106801		Clip		Appelez-nous	-
36	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
37	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
38	M0288213		Clip		Appelez-nous	-
39	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
40	B5783101		Stub-antenna A		Appelez-nous	-
41	B5783002		Bearing Antenna A		Appelez-nous	-
42	M0281203		Nut A		Appelez-nous	-
44	M0274044		Washer		Appelez-nous	-
