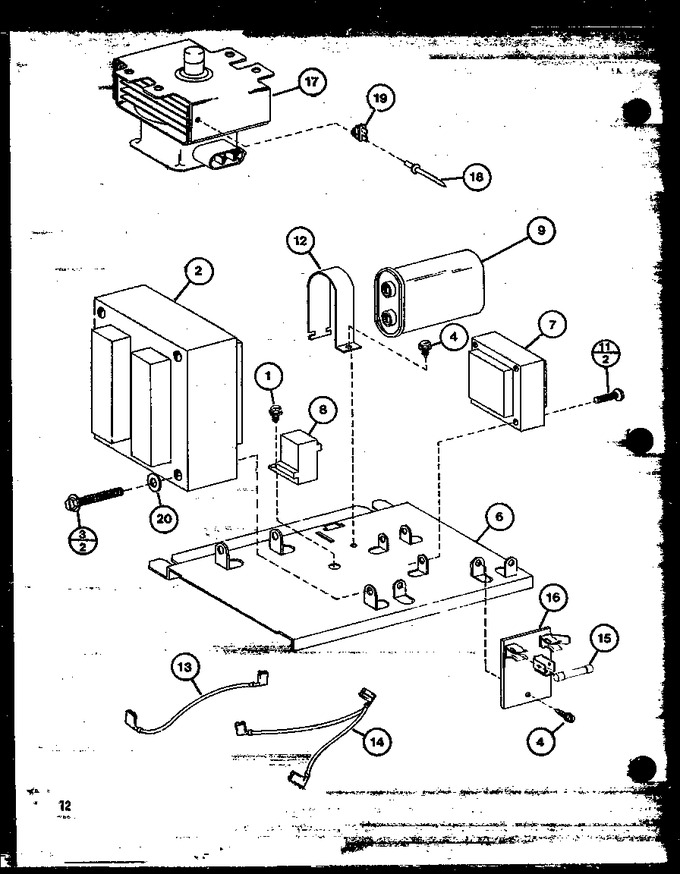

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
2	D7498503		Transformer		Appelez-nous	-
3	M0254452		Screw		Appelez-nous	-
4	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
6	D7351805		Mtg Plate Trans		Appelez-nous	-
7	C8807806		Transformer-filament		Appelez-nous	-
8	B8329802		Kit, Diode		Appelez-nous	-
9	59001651		Capacitor   (Replaces: D8547907)				$ 43.15
11	M0253509		Screw		Appelez-nous	-
12	A3257003		Strap-capacitor		Appelez-nous	-
13	D7292618		Jumper Wire		Appelez-nous	-
13	D7365120		Hv Wire		Appelez-nous	-
13	D7292672		Jumper Wire		Appelez-nous	-
14	D7292686		Jumper Wire		Appelez-nous	-
15	ABC20		Fuse 20 Amp K   (Replaces: M0805101)			Immediately	$ 10.31
16	C8845901		Terminal Board K		Appelez-nous	-
17	R0157453		Magnetron		Appelez-nous	-
18	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
19	B5795304		Fuse, Thermal		Appelez-nous	-
20	M0272805		Lock Washer		Appelez-nous	-
NI	A0050769		Paint-spray-deep Rich Br.		Appelez-nous	-
NI	R0193555		12lb Calibration Wt		Appelez-nous	-
NI	R0193050		Torx Drive Shank		Appelez-nous	-
NI	R0193551		Bit For Torx 15h Drive Screws		Appelez-nous	-
NI	A1046601		Cookbook		Appelez-nous	-
NI	C8937001		Owners Manual (rr-1225)		Appelez-nous	-
NI	R0197055		Paint Deep Rich Br.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
