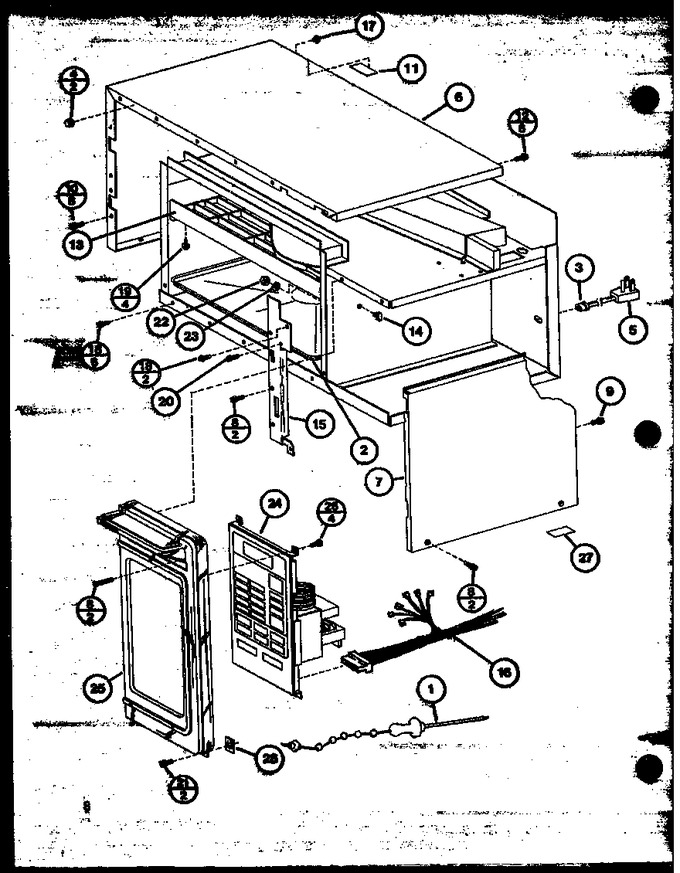

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8821503		Temp Probe		Appelez-nous	-
2	D7628601		Oven Tray Kit		Appelez-nous	-
3	A0319703		Strain Relief K		Appelez-nous	-
4	A1511502		Bumper		Appelez-nous	-
5	B8310501		Cord, Power		Appelez-nous	-
6	D7396705		Wrapper Oc		Appelez-nous	-
7	D7396803		Access Panel		Appelez-nous	-
8	M0243324		Screw Torx		Appelez-nous	-
9	M0259318		Screw Torx		Appelez-nous	-
10	M0216517		Screw		Appelez-nous	-
11	M0275165		Tape Alum		Appelez-nous	-
12	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
13	D7544002		Grease Shield		Appelez-nous	-
14	B8355401		Temp Probe Jack K		Appelez-nous	-
15	D7533902		Flange, Ov-cov Pntd		Appelez-nous	-
16	D7666801		Wiring Harness		Appelez-nous	-
17	A4539615		Rivet-pop		Appelez-nous	-
18	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
19	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
20	M0217514		Screw		Appelez-nous	-
21	M0243318		Screw, Tf		Appelez-nous	-
22	M0281405		Nut K		Appelez-nous	-
23	M0270536		Washer		Appelez-nous	-
24	R0163108		Module Rr-1225		Appelez-nous	-
25	D7625801		Escutcheon		Appelez-nous	-
26	M0234016		Screw		Appelez-nous	-
27	B5738501		Seal K		Appelez-nous	-
28	M0288701		Speed Nut ``u`` Type- Nameplate		Appelez-nous	-
