01 - Cover


03 - Control Panel


05 - Burner


07 - Body


09 - Door/drawer

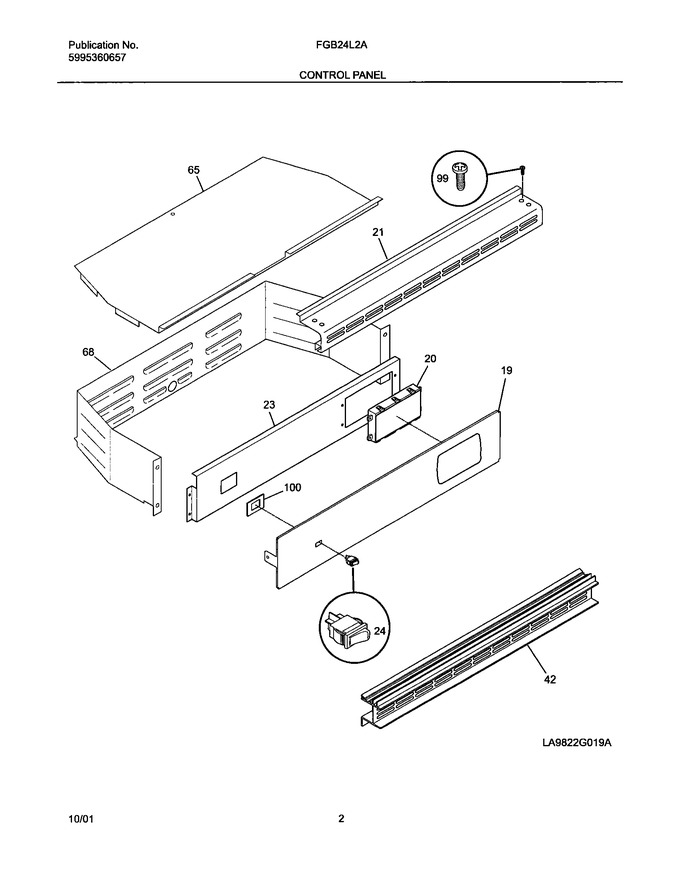

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318179806		Panel,control ,black		Appelez-nous	-
21	318176500		Trim,top ,black		Appelez-nous	-
23	318015037		Bracket,clock/timer Mtg		Appelez-nous	-
42	318027101		Trim,center Vent ,black		Appelez-nous	-
65	318038804		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
99	5303307406		Screw,6-32 X 3/8 ,(2)				$ 11.29
100	318112200		Plate,mounting ,rocker Switch		Appelez-nous	-
F20	903091-9050		Clock/timer,eoc ,black   (Replaces: 318185321)				$ 333.12
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
