SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Burner


07 - Body

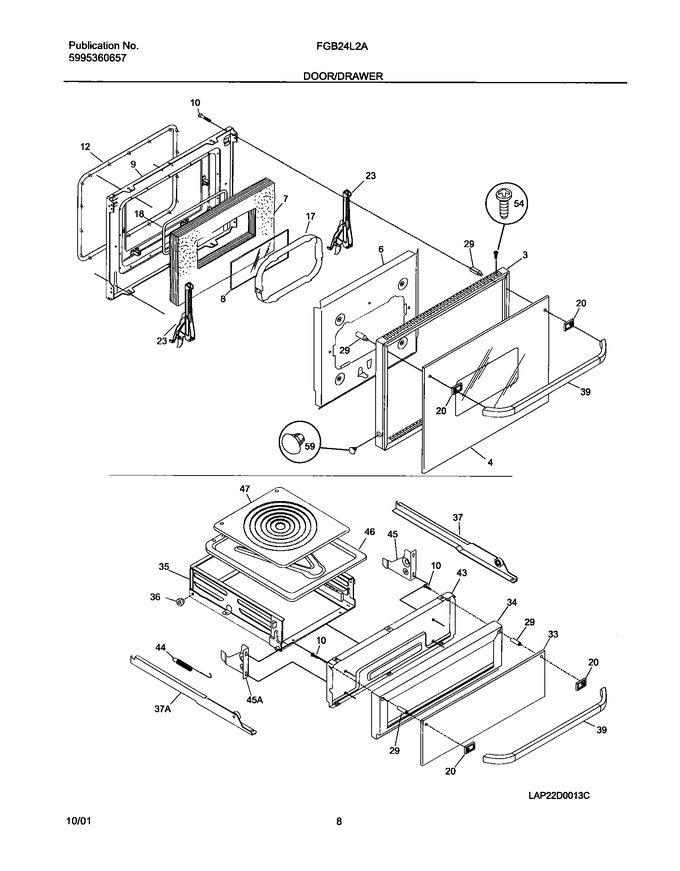

09 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026520		Trim,oven Door		Appelez-nous	-
4	318210908		Glass,oven Door ,black ,outer		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
8	318211700		Glass,oven Door ,inner		Appelez-nous	-
9	318156604		Liner,oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
17	318162601		Support,glass		Appelez-nous	-
18	318053204		Gasket				$ 63.05
20	318014300		Spacer-handle, Black, (2)				$ 36.44
23	318024702		Hinge,oven Door		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
33	318211201		Glass,drawer ,black ,front		Appelez-nous	-
34	318116000		Panel,front Frame		Appelez-nous	-
35	318107000		Drawer,broiler		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
37	3203722		Rail-drawer Rh		Appelez-nous	-
39	318362822		Handle-door, Black, Oven   (Replaces: 316091103)				$ 104.05
43	318107800		Liner,broiler Door		Appelez-nous	-
44	318088300		Spring-broiler		Appelez-nous	-
45	318024400		Hinge-broiler,rh		Appelez-nous	-
46	318126200		Pan-broiler		Appelez-nous	-
47	318126300		Insert-broiler Pan		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531 ,black ,door Frame				$ 10.06
59	3202113		Plug,button		Appelez-nous	-
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
45A	318024401		Hinge-broiler,lh		Appelez-nous	-
F12	5303316768		Seal-oven Door		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66

    View Diagram in Separate Window       Print Part List
