SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Burner

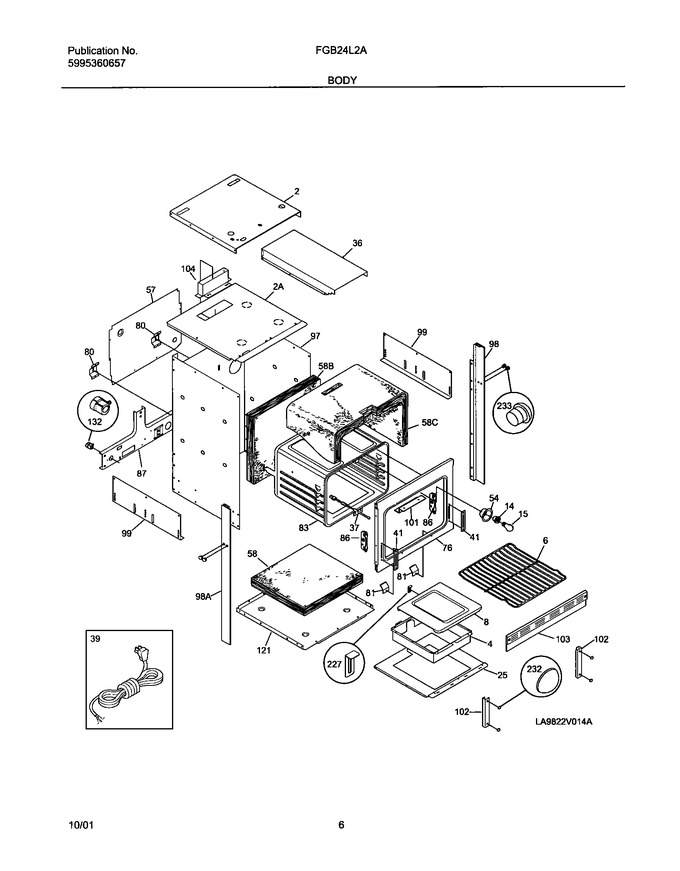

07 - Body
09 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 318101902 | Wrapper,top |
|
- | |||||
| 4 | 318161500 | Box-oven Burner |
|
- | |||||
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 8 | 318121400 | Panel-oven Bottom |
|
- | |||||
| 25 | 318179000 | Shield-insulation,base |
|
- | |||||
| 36 | 318176001 | Flue |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 57 | 318071130 | Shield,rear Wall |
|
- | |||||
| 58 | 5303280377 | Insulation, Oven Bottom |
|
- | |||||
| 76 | 318056124 | Front,oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 81 | 5303323710 | Bracket-oven |
|
- | |||||
| 83 | 318089403 | Liner,oven Assy |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 87 | 5303308475 | Bracket-safety Valve |
|
- | |||||
| 97 | 318066803 | Wrapper,back & Sides |
|
- | |||||
| 98 | 318176800 | Trim-side,inner,rh |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 101 | 5303308474 | Shield,vent |
|
- | |||||
| 102 | 3203688 | Support,oven Front |
|
- | |||||
| 103 | 5303316735 | Trim,base ,black ,lower |
|
- | |||||
| 104 | 318170200 | Flue |
|
- | |||||
| 121 | 318145001 | Wrapper-base |
|
- | |||||
| 132 | 5304513507 | Strain Relief (Replaces: 3201437) |
|
$ 9.10 | |||||
| 227 | 5303323958 | Retainer,oven Bottom |
|
- | |||||
| 232 | 318147410 | Bumper,base |
|
- | |||||
| 233 | 318166800 | Plug,button ,black |
|
- | |||||
| 2A | 5303305035 | Shield, Insulation |
|
- | |||||
| 58B | 5303299688 | Insulation, Oven Back |
|
- | |||||
| 58C | 318132600 | Insulation, Top & Sides |
|
- | |||||
| 98A | 318176801 | Trim,side ,inner,lh |
|
- | |||||
| F14 | 316116400 | Receptacle, Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| F15 | 3201908 | Light,oven |
|
- | |||||
| F37 | 316217002 | Probe,oven Temp (Replaces: 318198500) |
|
Immediately | $ 61.23 | ||||
| F39 | 5303308453 | Cord,electric Power |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| NI | 08011955 | Screw,10-24 X 0.375 ,square Drive |
|
Immediately | $ 9.36 | ||||
| NI | 5303300195 | Screw,10-32 X 0.375 ,terminal Block ,(2) |
|
- |
