SELECT A DIAGRAM

01 - Cover

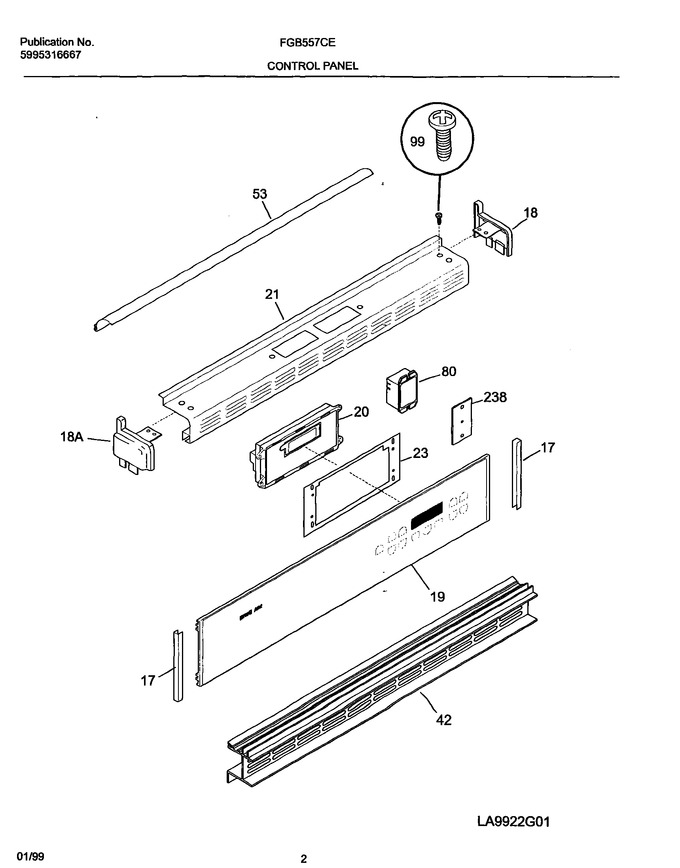

03 - Control Panel


05 - Burner


07 - Cavity/elements


10 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	5303310386		Trim-end, (2)		Appelez-nous	-
18	5303280338		End Cap, Black, Rh		Appelez-nous	-
19	318030700		Panel-control, Black		Appelez-nous	-
21	5303308451		Trim-splasher, Black		Appelez-nous	-
23	318111610		Bracket Timer		Appelez-nous	-
42	5303310388		Trim-vent, Black		Appelez-nous	-
53	318056901		Deflector Trim,black				$ 293.32
99	5303311528		Screw		Appelez-nous	-
238	318111700		Bracket-relay		Appelez-nous	-
18A	5303280339		End Cap, Black, Lh		Appelez-nous	-
F20	318010800		Clock/timer, Electronic		Appelez-nous	-
F80	318111500		Relay		Appelez-nous	-
NI	3201861		Screw, 6 X 3/8				$ 0.76
NI	5303288566		Screw,8 X 1/4   (Replaces: 5303323130)				$ 2.12
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
