SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Burner

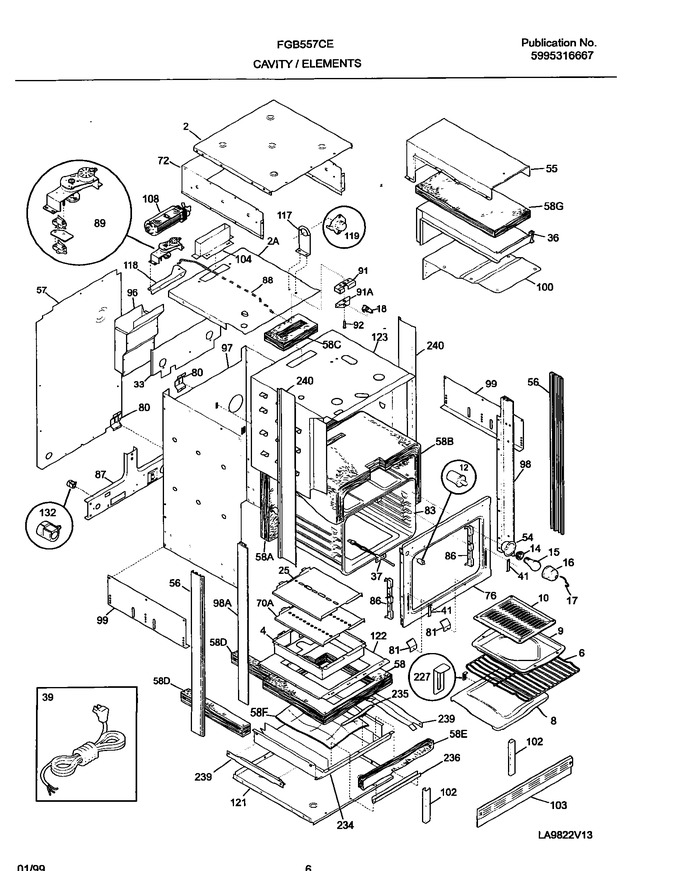

07 - Cavity/elements


10 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318145000		Wrapper, Top		Appelez-nous	-
4	318161500		Box-oven Burner		Appelez-nous	-
6	5303299366		Rack-oven		Appelez-nous	-
8	318121400		Panel-oven Bottom		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
12	318089900		Switch-light		Appelez-nous	-
14	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer-lens		Appelez-nous	-
18	3051648		Latch-door		Appelez-nous	-
25	5303210844		Shield-heat, Lower		Appelez-nous	-
33	5303302719		Shield, Rear Wall		Appelez-nous	-
36	3203725		Flue		Appelez-nous	-
41	3019063		Retainer-door		Appelez-nous	-
54	5303310514		Housing-oven Light		Appelez-nous	-
55	5303326219		Shield,flue		Appelez-nous	-
56	318145508		Trim-bodyside		Appelez-nous	-
57	5303308476		Shield-rear Wall		Appelez-nous	-
58	5303326121		Insulation,oven Bottom		Appelez-nous	-
72	5303210685		Wrapper-shield		Appelez-nous	-
76	318056133		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	5303323710		Bracket-oven		Appelez-nous	-
83	318089410		Liner-oven Assy		Appelez-nous	-
86	3201631		Channel, Hinge				$ 58.22
87	5303308443		Bracket-safety Valve		Appelez-nous	-
88	3016241		Rod-latch		Appelez-nous	-
91	3019069		Housing-latch		Appelez-nous	-
92	5308012004		Stud-axie				$ 8.29
96	5303326216		Duct Blower		Appelez-nous	-
97	318066801		Wrapper-back Side		Appelez-nous	-
98	318029400		Trim-side, Inner, Rh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
100	5303302715		Shield,flue ,bottom		Appelez-nous	-
102	3203688		Support,oven Front		Appelez-nous	-
103	5303316735		Trim,base ,black ,lower		Appelez-nous	-
104	5303323971		Flue Box Adaptor		Appelez-nous	-
108	318073000		Motor-blower		Appelez-nous	-
117	5303302718		Bracket-thermo Protector		Appelez-nous	-
118	5303308461		Bracket-latch		Appelez-nous	-
121	318145001		Wrapper-base		Appelez-nous	-
122	318179000		Shield-insulation,base		Appelez-nous	-
123	318071420		Wrapper Shield-insulation		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
227	5303123958		Retainer Oven Bottom		Appelez-nous	-
234	5303210851		Shield-insulation, Base		Appelez-nous	-
235	5303326207		Bracket		Appelez-nous	-
236	318108900		Shield,insulation ,1.25x1.0x12.9		Appelez-nous	-
239	5303326183		Angle,burner Box		Appelez-nous	-
240	318119300		Shield,bodyside		Appelez-nous	-
2A	318102400		Mid Top Cover		Appelez-nous	-
58A	5303326123		Insulation,oven Back		Appelez-nous	-
58B	5303323699		Insulation,wrapper		Appelez-nous	-
58C	5303326120		Insulation Adaptor		Appelez-nous	-
58D	5303326117		Insulation-deflector		Appelez-nous	-
58E	5303326118		Insulation Deflector		Appelez-nous	-
58F	5303326122		Insulation Deflector		Appelez-nous	-
58G	5303326119		Insulation,flue		Appelez-nous	-
70A	5303210843		Shield-insulation		Appelez-nous	-
91A	3051647		Housing, Latch		Appelez-nous	-
98A	318029401		Trim-side, Inner, Lh		Appelez-nous	-
F119	5303326252		Switch-thermal		Appelez-nous	-
F37	318087701		Probe-oven Temp				$ 303.77
F39	5303308453		Cord,electric Power		Appelez-nous	-
F89	318095800		Motor-latch/lock		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5308007939		Plug, Door Liner		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	5303300195		Screw,10-32 X 3/8		Appelez-nous	-
NI	3018802		Clip-cable		Appelez-nous	-
NI	3015722		Clip-wire		Appelez-nous	-
