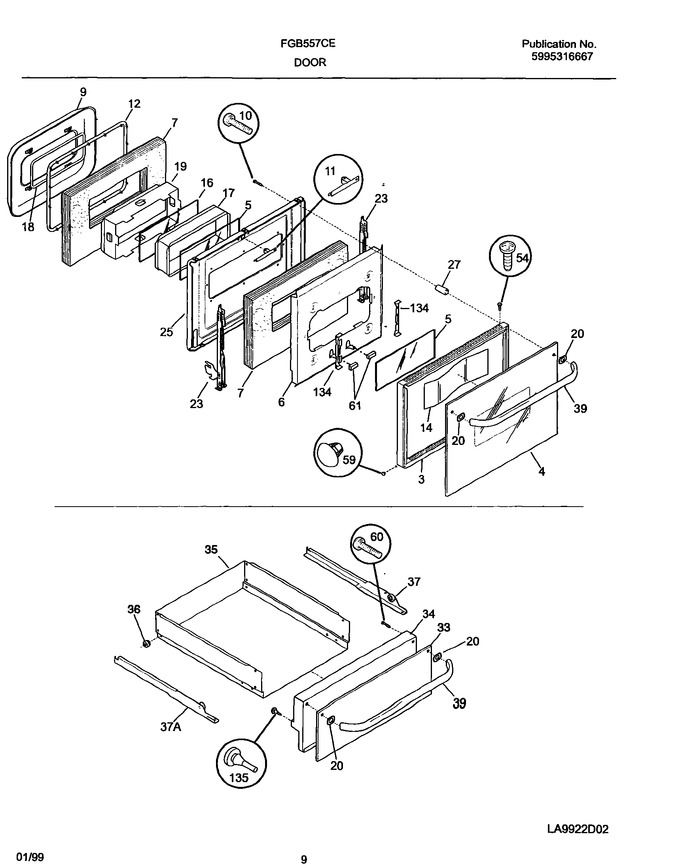

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026510		Trim-oven Door,black		Appelez-nous	-
4	3202420		Glass-oven Door,black		Appelez-nous	-
4	5303302707		Glass-oven Door,white		Appelez-nous	-
5	5303323828		Glass-oven Door		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318038600		Liner,oven Door		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
11	530324969		Strike Plate		Appelez-nous	-
12	5303325053		Seal -oven Door,front		Appelez-nous	-
14	5303271093		Reflector, Aluminum Foil		Appelez-nous	-
16	5303324250		Glass-oven Door				$ 184.54
17	318139100		Spacer-glass		Appelez-nous	-
18	3016263		Seal-rope				$ 66.15
19	318139201		Collar-glass Mtg		Appelez-nous	-
20	318014301		Spacer-handle,white				$ 48.88
20	318014300		Spacer-handle,black				$ 36.44
23	318074100		Hinge-oven Door		Appelez-nous	-
25	318048300		Liner-door Baffle		Appelez-nous	-
27	5303210003		Spacer-handle Mtg		Appelez-nous	-
33	5303308464		Glass-drawer, Front		Appelez-nous	-
33	3203715		Glass-drawer, Front		Appelez-nous	-
34	5303210010		Panel-inner Drawer		Appelez-nous	-
35	530326215		Drawer-utility		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
37	3203722		Rail-drawer Rh		Appelez-nous	-
39	318362822		Handle-door,black   (Replaces: 316091103)				$ 104.05
39	316091104		Handle-door,white		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531				$ 10.06
59	3202113		Button, Plug		Appelez-nous	-
61	5303300414		Spacer, Cork & Rubber				$ 13.18
134	318122101		Bracket-glass		Appelez-nous	-
135	3131903		Bumper				$ 55.36
603	5303310510		Screw <10-24 X 5/8 >				$ 14.18
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
NI	5303325981		Screw,10-16 X 1 1/2		Appelez-nous	-
NI	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	3051070		Screw,10-24 X 7/16		Appelez-nous	-
NI	154079601		Nut   (Replaces: 3201885)				$ 0.41
