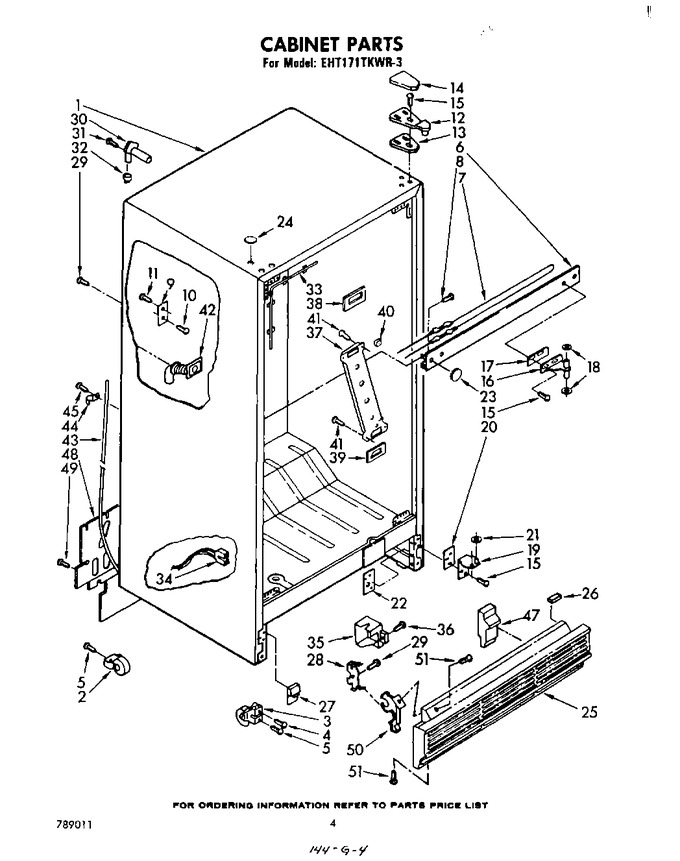

SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet


04 - Liner


05 - Breaker And Partition


06 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WPW10250570		Roller, Rear   (Replaces: 981122)				$ 36.15
3	981127		Roller, Front		Appelez-nous	-
4	488681		Screw, 5/16-24 X 1		Appelez-nous	-
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	836067		Center Rail (white)		Appelez-nous	-
6	989908		Center Rail (coffee)		Appelez-nous	-
6	989909		Center Rail (golden Harvest)		Appelez-nous	-
6	989910		Center Rail (new Avocado)		Appelez-nous	-
6	989911		Center Rail (almond)		Appelez-nous	-
7	989256		Heater, Mullion		Appelez-nous	-
8	488624		Screw, No.8 X 3/8		Appelez-nous	-
8	487470		Screw (repair)		Appelez-nous	-
9	547603		Strap, Ground		Appelez-nous	-
10	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 9.79
11	488684		Screw, 8-32 X 1-1/2		Appelez-nous	-
12	842039		Hinge Assembly Top		Appelez-nous	-
13	836151		Shim, Hinge Top		Appelez-nous	-
14	842010		Hinge Cover (white)		Appelez-nous	-
14	989895		Hinge, Cover (coffee)		Appelez-nous	-
14	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
14	989194		Hinge Cover (almond)		Appelez-nous	-
14	989897		Hinge Cover (new Avocado)		Appelez-nous	-
15	WP999367		Screw, No.10-32 X 23/32 (3)   (Replaces: 489105)				$ 7.07
15	488949		Screw (repair)		Appelez-nous	-
16	836153		Hinge, Center		Appelez-nous	-
17	836155		Shim, Hinge Center		Appelez-nous	-
18	WP488296		Washer (2)   (Replaces: 488296)				$ 6.47
19	836686		Hinge (bottom)		Appelez-nous	-
20	836196		Shim, Hinge Bottom		Appelez-nous	-
21	WP487802		Washer   (Replaces: 488723)			Immediately	$ 7.12
22	836162		Tap Plate		Appelez-nous	-
23	989881		Hole Plug (coffee)		Appelez-nous	-
23	989193		Hole, Plug (almond)		Appelez-nous	-
23	989883		Hole Plug (new Avocado)		Appelez-nous	-
23	835974		Hole, Plug (white)		Appelez-nous	-
23	989882		Hole Plug (golden Harvest)		Appelez-nous	-
24	989876		Hole Plug (golden Harvest)		Appelez-nous	-
24	989877		Hole Plug (new Avocado)		Appelez-nous	-
24	989195		Hole Plug (almond)		Appelez-nous	-
24	842031		Hole Plug (white)		Appelez-nous	-
24	989875		Hole Plug (coffee)		Appelez-nous	-
25	944236		Exterior Grille (new Avocado)		Appelez-nous	-
25	944235		Exterior, Grille (golden Harvest)		Appelez-nous	-
25	944237		Exterior, Grille (almond)		Appelez-nous	-
25	944233		Exterior, Grille (white)		Appelez-nous	-
25	944234		Exterior, Grille (coffee)		Appelez-nous	-
26	546131		Bumper, Grille		Appelez-nous	-
27	838535		Filler, Corner (white)		Appelez-nous	-
27	989931		Filler, Corner (almond)		Appelez-nous	-
27	989930		Filler, Corner (new Avocado)		Appelez-nous	-
27	989929		Filler, Corner (golden Harvest)		Appelez-nous	-
27	989928		Filler, Corner (coffee)		Appelez-nous	-
28	989068		Clip, Grille		Appelez-nous	-
29	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
30	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 10.79
31	WP98165		Screw, No.8 X 5/8   (Replaces: 488401)				$ 7.20
32	WP487996		Cap, Plastic   (Replaces: 487996)				$ 7.43
33	531670		Stile, Heater		Appelez-nous	-
34	548734		Wire Assembly Valve		Appelez-nous	-
35	549947		Box, Junction		Appelez-nous	-
36	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.01
37	934057		Duct, Air		Appelez-nous	-
38	836565		Gasket Inlet		Appelez-nous	-
39	934058		Gasket Outlet		Appelez-nous	-
40	488564		Speed Nut		Appelez-nous	-
41	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 7.20
42	836096		Fitting Drain Pan		Appelez-nous	-
43	8316810		Tube, Drain   (Replaces: 509638)				$ 107.76
44	836077		Tube Clamp		Appelez-nous	-
45	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.07
47	836372		Insert, Baffle		Appelez-nous	-
48	850459		Cover, Compartment		Appelez-nous	-
49	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 6.90
50	WP944224		Grille Support   (Replaces: 944224)				$ 6.80
51	489085		Screw, 8-22 X 5/16		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
