SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet


04 - Liner

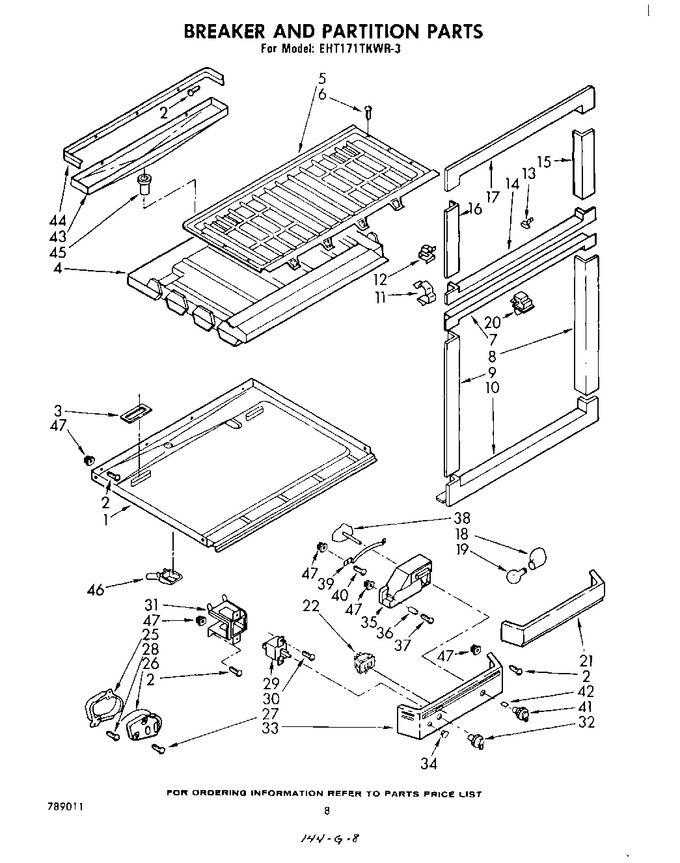

05 - Breaker And Partition


06 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	981727		Compartment Separator Bottom		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
3	981725		Gasket, Air Return		Appelez-nous	-
4	991172		Insulation, Separator		Appelez-nous	-
5	848422		Separator, Top Compartment		Appelez-nous	-
6	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.01
7	836025		Breaker, Mullion (bottom)		Appelez-nous	-
8	836028		Breaker Trim R.s.		Appelez-nous	-
9	836032		Breaker Trim L.s.		Appelez-nous	-
10	836026		Breaker Trim Bottom		Appelez-nous	-
11	845807		Breaker Clip, Wrap		Appelez-nous	-
12	836090		Breaker Clip, Line		Appelez-nous	-
13	534365		Breaker, Trim Clip				$ 13.35
14	836223		Breaker, Mullion (top)		Appelez-nous	-
15	836027		Breaker Trim, R.s.		Appelez-nous	-
16	836031		Breaker Trim, L.s.		Appelez-nous	-
17	836078		Breaker Trim Top Freezer		Appelez-nous	-
18	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 99.14
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
20	W11384469		Rocker Arm Switch   (Replaces: 549702)			Immediately	$ 33.51
21	983910		Light Lens		Appelez-nous	-
22	938049		Switch, Toggle		Appelez-nous	-
25	983079		Timer, Container		Appelez-nous	-
26	851161		Timer, 8 Hr.		Appelez-nous	-
27	488678		Screw, 8 X 1-3/8 (2)		Appelez-nous	-
28	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.07
29	GC506		Thermostat & Barrier   (Replaces: 850955)				$ 50.44
30	WP965173		Screw, 8-15 X 3/8   (Replaces: 487584)			Immediately	$ 9.65
31	848446		Bracket, Thermostat		Appelez-nous	-
32	836482		Knob, Temperature		Appelez-nous	-
33	942214		Panel, Control		Appelez-nous	-
34	534927		Hole Plug		Appelez-nous	-
35	836487		Air Diffuser		Appelez-nous	-
36	836667		Spacer		Appelez-nous	-
37	488357		Screw, 8 X 1-1/4		Appelez-nous	-
38	836247		Damper, Air		Appelez-nous	-
39	836493		Retainer, Damper		Appelez-nous	-
40	488624		Screw, 8 X 3/8		Appelez-nous	-
41	837445		Control Knob		Appelez-nous	-
42	837444		Knob, Retainer		Appelez-nous	-
43	836199		Drain Pan		Appelez-nous	-
44	843290		Gasket Pan		Appelez-nous	-
45	841770		Drain Fitting		Appelez-nous	-
46	836095		Cup, Drain		Appelez-nous	-
47	842339		Grommet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
