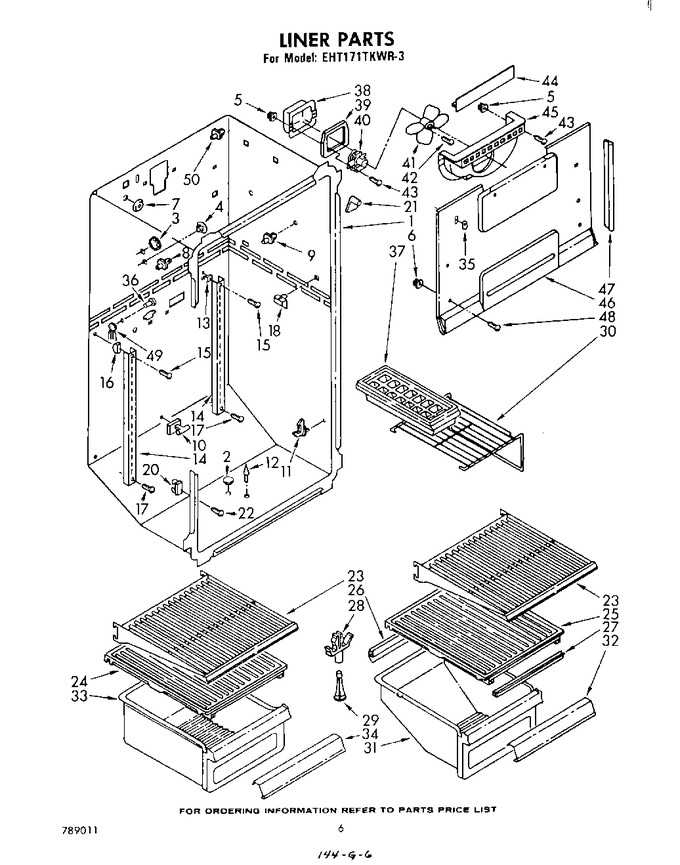

04 - Liner


05 - Breaker And Partition


06 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	835370		Drain Cover		Appelez-nous	-
3	519890		Hole Plug (5)		Appelez-nous	-
4	659598		Hole Plug (2)		Appelez-nous	-
5	842339		Grommet		Appelez-nous	-
6	848445		Grommet		Appelez-nous	-
7	534348		Grommet, Water Inlet		Appelez-nous	-
8	982642		Shelf Stud (2)		Appelez-nous	-
9	536475		Shelf Stud (2)				$ 7.28
10	836412		Stud, Support Rear		Appelez-nous	-
11	836423		Shelf Stud (2)		Appelez-nous	-
12	836409		Grommet, Crisper Cover		Appelez-nous	-
13	983604		Screw Anchor (2)		Appelez-nous	-
14	934267		Shelf, Ladder (2)		Appelez-nous	-
15	488357		Screw, No.8 X 1/4 (2)		Appelez-nous	-
16	520965		Screw, Support (4)				$ 26.87
17	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
18	836374		Retainer, Stud (4)		Appelez-nous	-
20	539760		Insulator Spacer		Appelez-nous	-
21	836040		Insulator Spacer		Appelez-nous	-
22	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 6.79
23	936848		Shelf, Cantilever		Appelez-nous	-
24	845606		Cover, Meat Pan		Appelez-nous	-
25	836453		Cover, Pan Slide		Appelez-nous	-
26	840002		Crisper Gasket, Rear		Appelez-nous	-
27	840003		Crisper Gasket, Front		Appelez-nous	-
28	848562		Support, Crisper				$ 24.30
29	836410		Post, Crisper				$ 5.84
30	982313		Wire, Shelf F.c.		Appelez-nous	-
31	983812		Pan, Crisper		Appelez-nous	-
32	984745		Overlay Pan		Appelez-nous	-
33	987757		Pan, Meat		Appelez-nous	-
34	984744		Overlay Pan		Appelez-nous	-
35	659776		Hole Plug, Evaporator		Appelez-nous	-
36	850738		Receptacle Cap		Appelez-nous	-
37	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 41.00
38	836474		Fan Cover Motor		Appelez-nous	-
39	836475		Gasket, Cover		Appelez-nous	-
40	482731		Motor, Fan   (Replaces: 548697)			Immediately	$ 71.15
41	WP1100938		Blade, Fan   (Replaces: 548041)				$ 79.08
42	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 220.32
43	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
44	935068		Gasket, Sealing		Appelez-nous	-
45	935067		Scroll, Fan		Appelez-nous	-
46	986628		Cover, Evaporator		Appelez-nous	-
47	981749		Gasket Cover		Appelez-nous	-
48	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.01
49	481782		Wiring (ice Maker)		Appelez-nous	-
50	526383		Stud		Appelez-nous	-
