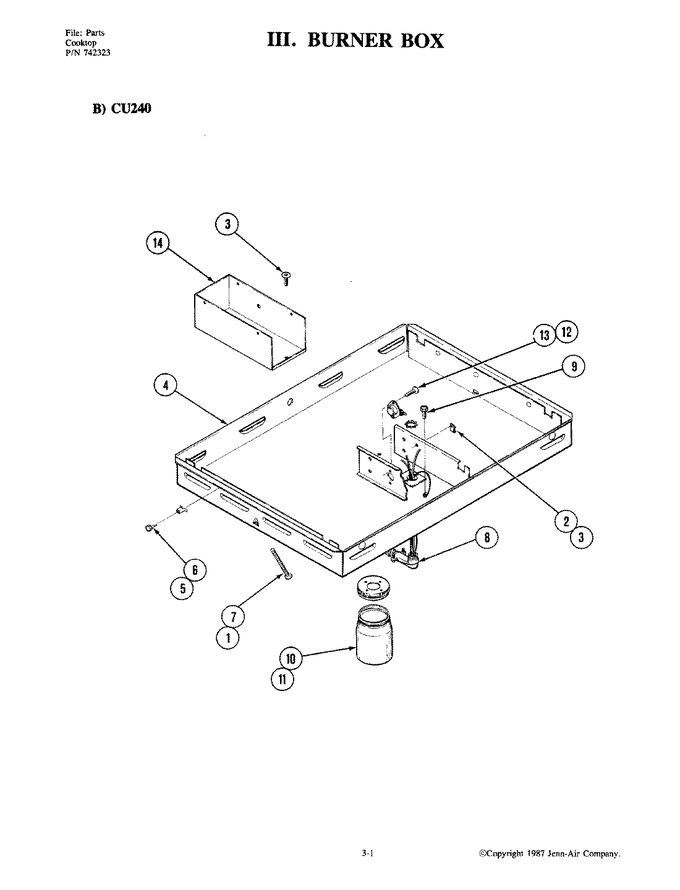

01 - Burner Box (cu240)
02 - Cooling Fan
03 - Escutcheon Assembly
04 - Top Assembly (cu240)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0282009 | Nut,square (Replaces: Y707124) | 1 |
|
$ 12.06 | ||||
| 2 | 712254 | Clamp, Cable | 1 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 4 | 712352 | Box, Burner | 1 |
|
- | ||||
| 5 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 6 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 7 | Y707121 | Screw | 1 |
|
- | ||||
| 8 | 703990 | Wire Cable Assy | 1 |
|
- | ||||
| 10 | WPY707869 | Jar, Drain (Replaces: Y707869) | 1 |
|
$ 61.43 | ||||
| 11 | Y707870 | Lid, Jar | 1 |
|
- | ||||
| 12 | 703988 | Limit, Thermal | 1 |
|
- | ||||
| 13 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 14 | 703949 | Plenum, Updraft | 1 |
|
- |
