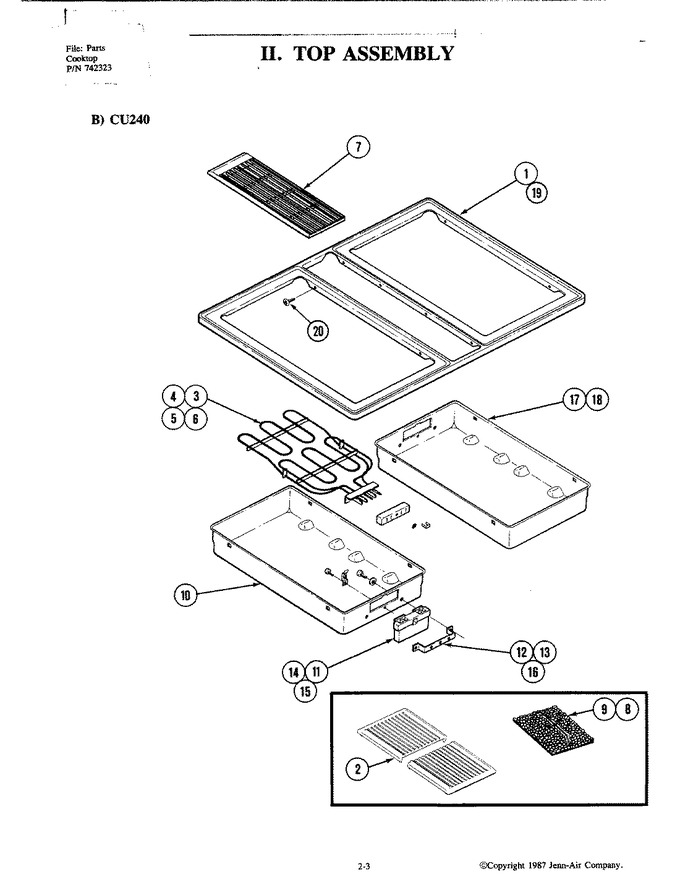

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704987		Top, Unit (blk)	2	Appelez-nous	-
1	704986		Cover, Motor	2	Appelez-nous	-
1	704988		Top, Unit (alm)	2	Appelez-nous	-
1	704171		Top	1	Appelez-nous	-
2	703905		Grate, Grill	1-2	Appelez-nous	-
3	703944		Element,complete,energy Saver	1-2	Appelez-nous	-
4	WPY708730		Block, Terminal   (Replaces: Y708730)	1-2		Immediately	$ 87.44
5	Y708862		Nut, Speed	1-2			$ 13.08
6	Y700450		Clip, Shunt	1-2			$ 9.51
7	703926		Grill, Air (blk)	1-2	Appelez-nous	-
8	708929		Plate, Rock	1-2	Appelez-nous	-
9	700819		Support, Rock Plate	1-2			$ 71.81
10	701955		Pan, Grill (lt)	1-2	Appelez-nous	-
10	712354		Wire, Blue	1-2	Appelez-nous	-
10	Y712197		Wire, Brown	1-2	Appelez-nous	-
10	Y712200		Wire, Yellow	1-2	Appelez-nous	-
10	Y712203		Wire, Violet	1-2	Appelez-nous	-
11	704168		Receptacle, Ceramic	1-2	Appelez-nous	-
12	Y702698		Bracket	1-2	Appelez-nous	-
13	Y707664		Washer	1-2	Appelez-nous	-
14	74004835		Clip   (Replaces: Y702699)	1-2			$ 11.37
15	WP489128		Screw   (Replaces: Y707341)	1-2			$ 9.79
16	WP59002061		Screw   (Replaces: Y707172)	1-2			$ 6.98
17	Y712199		Wire, Brown	1-2	Appelez-nous	-
17	WP5708M007-60		Wire, Yellow   (Replaces: Y712201)	1-2			$ 117.23
17	Y701956		Pan, Grill (rt)	1-2	Appelez-nous	-
17	Y702825		Plug, Rubber	1	Appelez-nous	-
17	WP5708M008-60		Wire, Violet   (Replaces: Y712202)	1-2			$ 87.19
17	Y712357		Wire Kit	1-2	Appelez-nous	-
18	WPY702434		Receptacle   (Replaces: 702783)	1-2		Immediately	$ 96.61
19	WP74003976		Washer   (Replaces: 702592)	1-2			$ 6.47
20	W11233072		Screw   (Replaces: Y707347)	1-2		Immediately	$ 12.62
