01 - Burner Box (cu240)
02 - Cooling Fan
03 - Escutcheon Assembly
04 - Top Assembly (cu240)
SELECT A DIAGRAM
New Model Search:

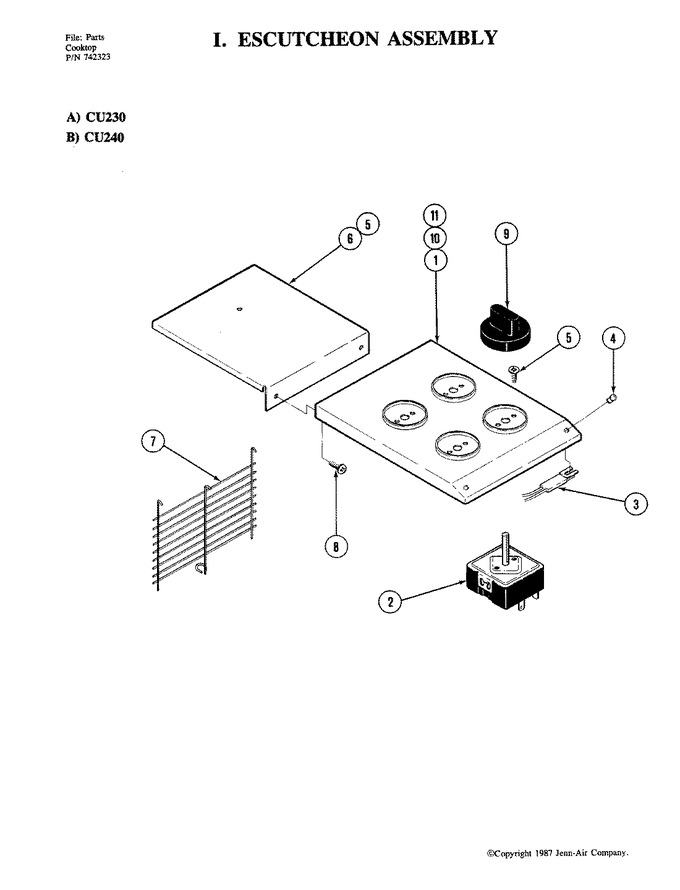

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 703936 | Escutcheon (blk) | 1 |
|
- | ||||
| 2 | W11120791 | Switch, Infinite (Replaces: 703650) | 1 |
|
Immediately | $ 98.55 | |||
| 3 | 703934 | Light, Pilot | 1 |
|
- | ||||
| 4 | 703927 | Lens | 1 |
|
- | ||||
| 5 | Y703935 | Screw | 1 |
|
- | ||||
| 6 | 703929 | Cover, Fan Housing | 1 |
|
- | ||||
| 7 | 703950 | Guard, Fan | 1 |
|
- | ||||
| 8 | 721357 | Wire, Kit Grill Pan (right) | 1 |
|
- | ||||
| 8 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 12.62 | |||
| 8 | 11008801 | Wire, Green (ground) (Replaces: 703991) | 1 |
|
$ 56.50 | ||||
| 9 | WPY703899 | Knob, Switch (blk) (Replaces: Y703899) | 1 |
|
Immediately | $ 21.09 | |||
| 10 | 3400855 | Screw 8-32 (Replaces: Y704426) | 1 |
|
- | ||||
| 11 | 704429 | Nut, Kep | 1 |
|
- | ||||
| NI | 16000448 | Manual, Service-no Refund | 1 |
|
- |
