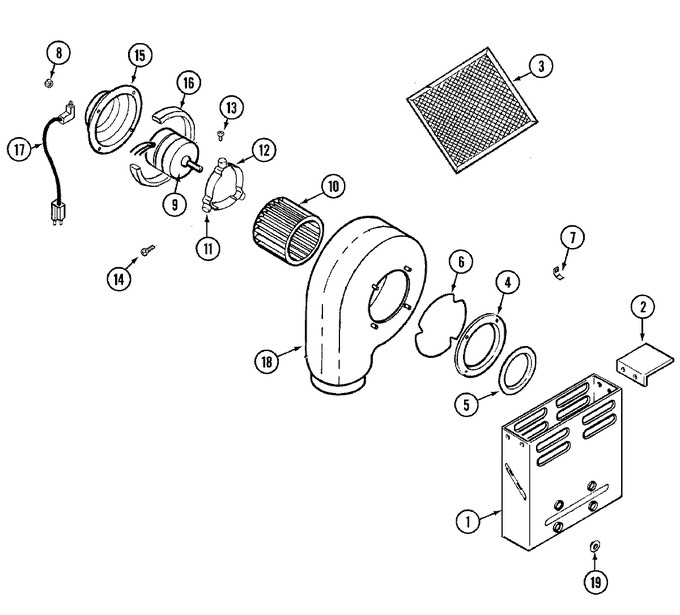

01 - Blower Plenum
02 - Body
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001379 | Plenum Assy. | 11 |
|
- | ||||
| 2 | Y706011 | Bracket, Plenum | 11 |
|
- | ||||
| 3 | WPY706012 | Filter (Replaces: Y706012) | 11 |
|
Immediately | $ 57.29 | |||
| 4 | Y704758 | Ring, Inlet | 11 |
|
- | ||||
| 5 | Y704761 | Ring, Restrictor | 11 |
|
- | ||||
| 6 | Y704762 | Retainer | 11 |
|
- | ||||
| 7 | Y707688 | Retainer, Filter | 11 |
|
- | ||||
| 8 | WPY707702 | Locknut (Replaces: Y707702) | 11 |
|
Immediately | $ 6.26 | |||
| 9 | 71001304 | Motor, Blower | 11 |
|
- | ||||
| 10 | WPY707985 | Wheel, Blower (Replaces: Y707985) | 11 |
|
Immediately | $ 145.55 | |||
| 11 | WP71003558 | Isolator (Replaces: Y708926) | 11 |
|
$ 11.47 | ||||
| 12 | Y707393 | Band, Motor | 11 |
|
- | ||||
| 13 | 71001387 | Nut | 11 |
|
- | ||||
| 13 | 707407 | Screw | 11 |
|
$ 6.42 | ||||
| 14 | Y707402 | Screw | 11 |
|
- | ||||
| 15 | Y704760 | Cover, Motor | 11 |
|
- | ||||
| 16 | Y715957 | Foam, Urethane | 11 |
|
- | ||||
| 17 | Y702733 | Cord, Power (motor) | 11 |
|
- | ||||
| 18 | 712008 | Scroll, Blower Assy. | 11 |
|
- | ||||
| 19 | Y706193 | Plug, Hole | 11 |
|
- |
