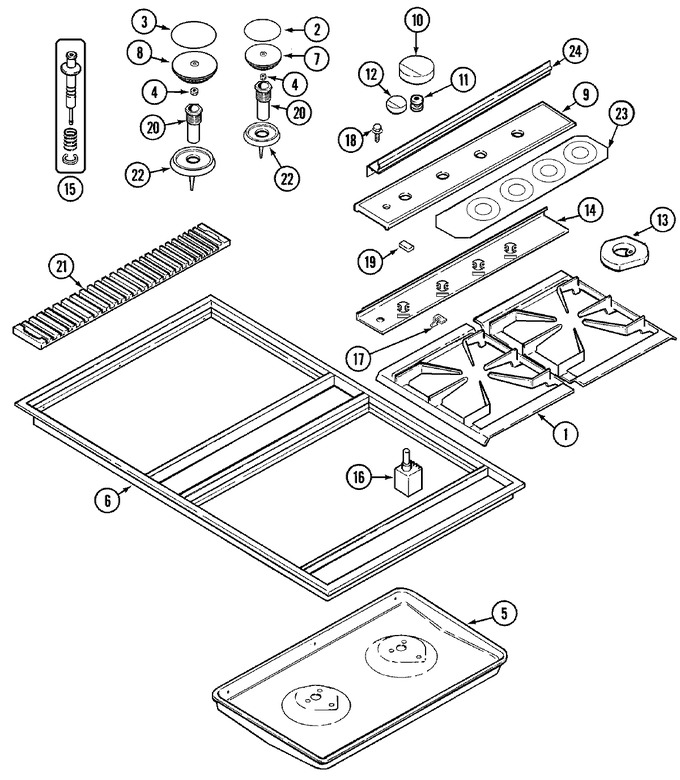

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Body
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001006 | Grate (gray) | 11 |
|
- | ||||
| 2 | 71001073 | Cap (smr-gry) | 11 |
|
- | ||||
| 3 | 71001075 | Cap (lg-gry) | 11 |
|
$ 39.17 | ||||
| 4 | W10244602 | Nut, M5 (Replaces: 71001092) | 11 |
|
$ 11.90 | ||||
| 5 | 71001001 | Pan, Aeration (wht) | 11 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 7.04 | ||||
| 6 | 71002558 | Top | 14 |
|
- | ||||
| 6 | 71001003 | Top | 11 |
|
- | ||||
| 7 | 71001078 | Head, Burner (lf) | 11 |
|
- | ||||
| 7 | 71001067 | Head, Burner Assy. (smr/gry) | 11 |
|
- | ||||
| 8 | 71001079 | Head, Burner (lg) | 11 |
|
- | ||||
| 8 | 71001070 | Head, Burner Assy. (lg/gry) | 11 |
|
- | ||||
| 9 | 71001094 | Panel, Control (wht)----na | 11 |
|
- | ||||
| 10 | 705845 | Knob (gry) | 11 |
|
- | ||||
| 11 | Y706103 | Grommet, Fan Switch | 11 |
|
$ 5.49 | ||||
| 11 | Y04100371 | Grommet (wht) | 11 |
|
- | ||||
| 12 | Y706097 | Knob, Fan Switch (gry) | 11 |
|
$ 14.56 | ||||
| 13 | Y706061 | Box, Light | 11 |
|
$ 51.50 | ||||
| 14 | 71001162 | Plate, Switch | 11 |
|
- | ||||
| 14 | 71002559 | Plate, Switch | 14 |
|
- | ||||
| 14 | WP59002061 | Screw (Replaces: Y707172) | 14 |
|
$ 6.98 | ||||
| 15 | W10124350 | Not Required Part Or See Note (ignitor Spring Included With Igniter. Cannot Be Ordered Seperately.) | 11 |
|
- | ||||
| 15 | 71001299 | Washer, Silicone | 11 |
|
- | ||||
| 15 | 71001694 | Igniter | 11 |
|
- | ||||
| 15 | 71001695 | Clip, Igniter | 11 |
|
- | ||||
| 16 | WP74009254 | Switch, Fan Control (Replaces: 71001303) | 11 |
|
Immediately | $ 192.13 | |||
| 17 | W10124350 | Not Required Part Or See Note | 14 |
|
- | ||||
| 17 | 71001059 | Clip, Retainer | 11 |
|
- | ||||
| 18 | WPY706189 | Screw No.8 Truss (Replaces: Y04100274) | 11 |
|
Immediately | $ 6.47 | |||
| 19 | 71001297 | Spacer, Foam | 11 |
|
- | ||||
| 19 | 71001158 | Harness, Supply | 11 |
|
- | ||||
| 19 | 71001384 | Harness, Wire (upr) | 11 |
|
- | ||||
| 20 | 71001082 | Venturi | 11 |
|
- | ||||
| 21 | Y706115 | Grill, Air (wht) | 11 |
|
- | ||||
| 22 | 71001081 | Base, Burner (lg) | 11 |
|
- | ||||
| 22 | 71001077 | O-ring, Base (lg) | 11 |
|
- | ||||
| 22 | 71001080 | Base, Burner (sm) | 11 |
|
- | ||||
| 22 | 71001076 | O-ring, Base (smr) | 11 |
|
- | ||||
| 23 | 71002580 | Lens, Light | 10 |
|
- | ||||
| 24 | 71002566 | Bracket, Control Panel | 11 |
|
- | ||||
| NI | 71002006 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 71001780 | Orifice (lp) Kit | 11 |
|
- |
