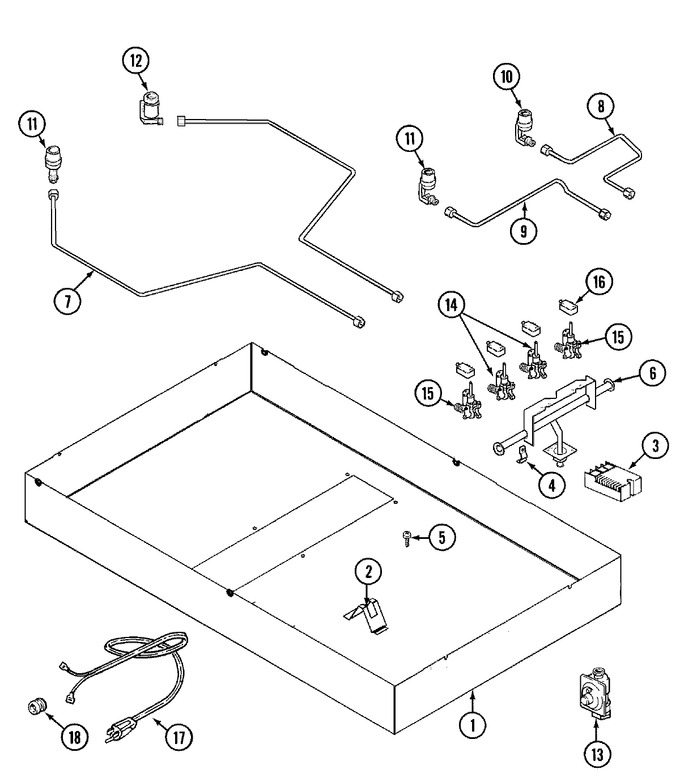

01 - Blower Plenum
02 - Body
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001161 | Box, Burner | 11 |
|
- | ||||
| 2 | 71001163 | Bracket | 11 |
|
- | ||||
| 3 | Y705823 | Module, Spark----na | 11 |
|
$ 213.91 | ||||
| 4 | 705859 | Bracket, Valve | 11 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 6 | 71001008 | Manifold | 11 |
|
- | ||||
| 7 | 71001154 | Tube (lf, Lr) | 11 |
|
- | ||||
| 8 | 71001155 | Tube (rf)----na | 11 |
|
- | ||||
| 9 | 71001156 | Tube (rr) | 11 |
|
- | ||||
| 10 | 71001086 | Holder, Orifice (12k) | 11 |
|
- | ||||
| 10 | 71001089 | Orifice (12k) | 11 |
|
- | ||||
| 11 | 71001091 | Orifice (6.5k) | 11 |
|
- | ||||
| 11 | 71001087 | Holder, Orifice (6.5k) | 11 |
|
- | ||||
| 12 | 71001088 | Holder, Orifice (10.5k) | 11 |
|
- | ||||
| 12 | 71001090 | Orifice (10.5k) | 11 |
|
- | ||||
| 13 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 11 |
|
Immediately | $ 215.01 | |||
| 14 | 71001060 | Valve, Burner (lg) | 11 |
|
- | ||||
| 14 | 71001791 | Valve, Burner (lg) | 12 |
|
- | ||||
| 15 | 71001061 | Valve, Burner (simmer) | 11 |
|
- | ||||
| 15 | 705860 | Screw, Valve | 11 |
|
- | ||||
| 15 | 71001790 | Valve, Burner (smr) | 12 |
|
- | ||||
| 15 | 705858 | Seal, Valve | 11 |
|
- | ||||
| 16 | 71001153 | Screw, Switch | 11 |
|
- | ||||
| 16 | 71001083 | Switch, Valve | 11 |
|
$ 95.73 | ||||
| 17 | Y705805 | Cord, Power | 11 |
|
- | ||||
| 18 | 705833 | Relief, Strain | 11 |
|
- |
