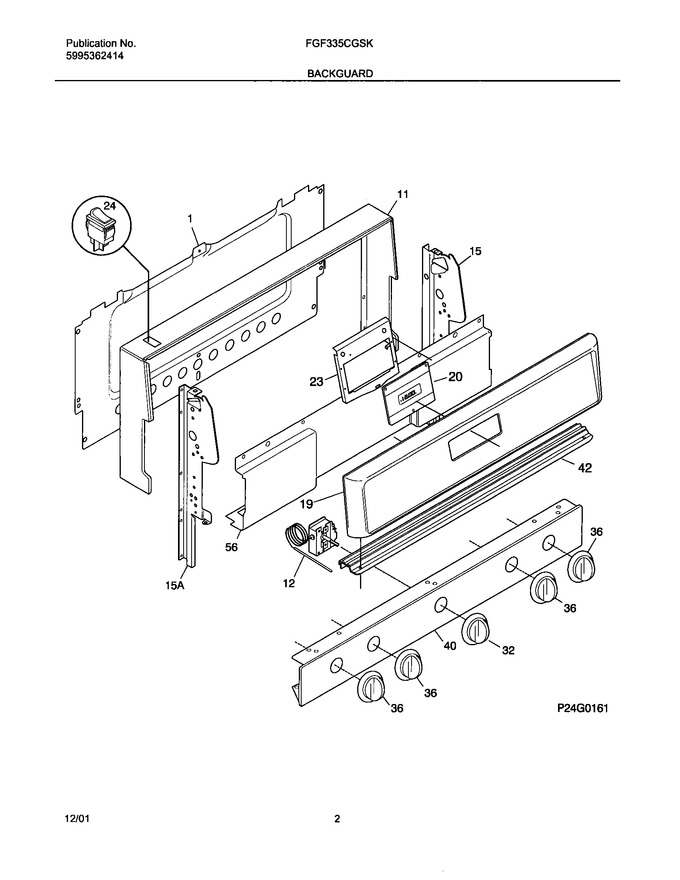

1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
11	316083722		Trim-wrapper,white ,textured,w/hole		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100532		Panel,control ,white		Appelez-nous	-
23	316033204		Bracket-timer		Appelez-nous	-
32	316109509		Knob-thermostat,white		Appelez-nous	-
36	316109513		Knob-top Valve,white				$ 47.25
40	316086832		Panel-manifold,white		Appelez-nous	-
42	316055200		Trim-vent,black		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
15A	316023109		Support,backguard ,lh		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
F20	316120500		Clock-timer		Appelez-nous	-
F24	5304527842		Switch,oven Light ,white ,rocker   (Replaces: 316118101)			Immediately	$ 16.13
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316098008		Overlay-clock,white		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
