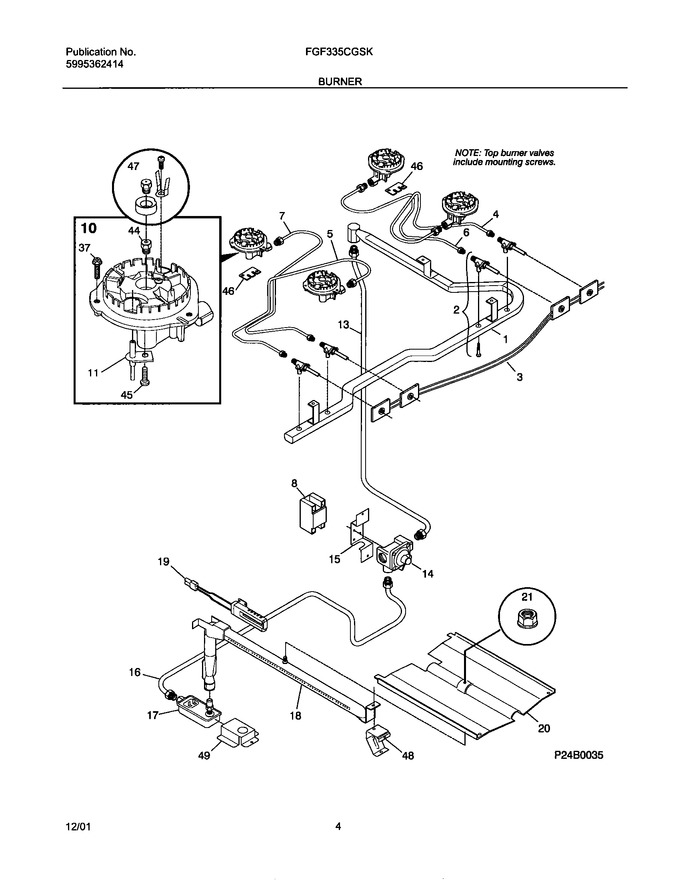

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316134501		Manifold Pipe,1		Appelez-nous	-
11	316011200		Ignitor,top Burner ,(4) ,w/mtg Bracket			Immediately	$ 38.68
15	316091600		Bracket-regulator				$ 73.56
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316069301		Screw,burner Mtg				$ 2.99
44	5303210090		Orifice,top Burner ,9k				$ 54.18
45	316011100		Screw,self-tapping ,m3x5.8 ,ignitor Mtg				$ 3.41
46	316074700		Plate-burner Tube		Appelez-nous	-
47	5303286386		Lp-conversion Kit				$ 143.29
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
F10	5303935025		Burner Assy,sealed ,small ,9k		Appelez-nous	-
F13	316065005		Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings				$ 91.51
F14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 105.42
F16	316065006		Tube,valve To Regul ,3/8				$ 122.09
F17	3203459		Valve-safety				$ 303.64
F18	316114300		Burner,oven				$ 169.88
F19	5303935066		Ignitor,oven Kit ,w/nut & Instr			Immediately	$ 59.58
F2	5303935184		Valve,top Buner ,9k ,with Mtg Screws		Appelez-nous	-
F3	316001827		Wiring Harness,ignitor ,with Switches				$ 224.65
F4	316059612		Tube-burner, Red, Rf				$ 88.25
F5	316059613		Tube-burner, Green, Lf				$ 87.16
F6	316059614		Tube,burner ,natural ,rr				$ 125.06
F7	316059615		Tube-burner, Black, Lr				$ 106.32
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	5303289034		Wiring Harness, Module/igniter				$ 188.84
NI	316134300		Screw,10-24 ,valve Mounting		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
