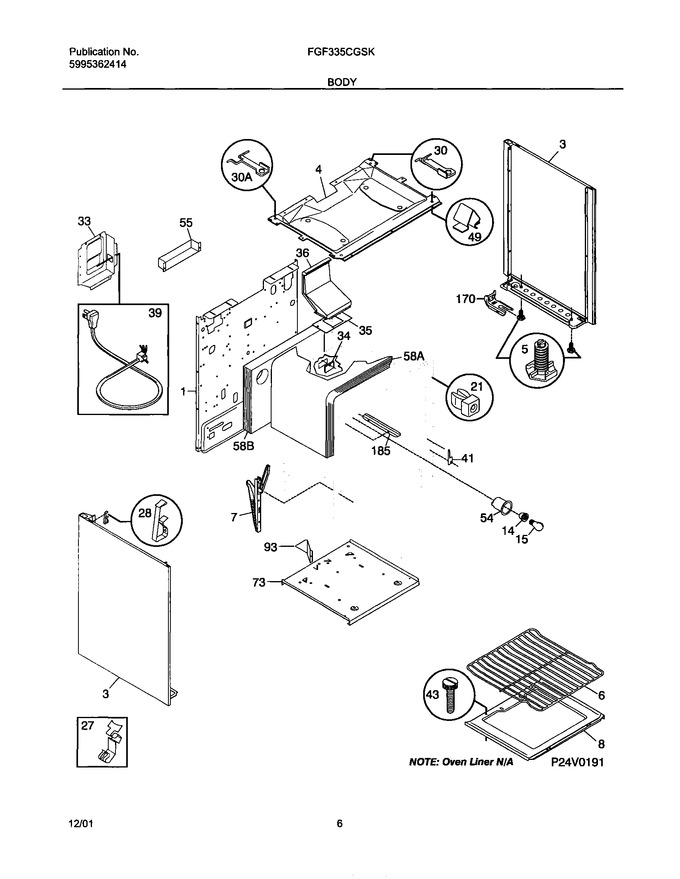

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029416		Panel,main Back		Appelez-nous	-
3	316081035		Panel-bodyside,white ,lh		Appelez-nous	-
3	316081034		Panel-bodyside,white ,rh		Appelez-nous	-
4	316011918		Burner Box,4 ,solid		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007001		Hinge,oven Door ,(2)				$ 234.55
8	5303300701		Panel-oven Bottom		Appelez-nous	-
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
21	3014099		Spacer,bodyside				$ 3.62
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
28	3011813		Clip,wire ,bodyside				$ 14.79
30	316059200		Bracket-main Top, Rh		Appelez-nous	-
33	316055601		Shield-spark Module		Appelez-nous	-
34	3018607		Plate,cover				$ 10.50
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	316133001		Flue,36		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
41	3131570		Cover Hinge Cutout				$ 7.35
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
49	3205821		Clip-spring Mtg   (Replaces: 3051124)			Immediately	$ 35.44
54	5303271606		Housing,oven Light		Appelez-nous	-
55	5303289358		Shield,flue		Appelez-nous	-
73	316109902		Base,low Broil				$ 131.25
93	316110000		Shield,ignitor ,metal		Appelez-nous	-
170	316112005		Kit-anti-tip Bracket (complete W/template & Screw)   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316116000		Screw`concrete Tpg `1.75 Inch ,anti-tip Brkt				$ 12.89
170	316112500		Template,anti-tip				$ 3.55
185	316112900		Shield,thermo Bulb		Appelez-nous	-
30A	316059201		Bracket-main Top, Lh		Appelez-nous	-
58A	3017142		Insulation, Oven Wrapper				$ 193.50
58B	3203541		Insulation, Oven Back		Appelez-nous	-
NI	316064600		Support,oven Bottom				$ 18.95
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316001225		Wiring Harness,main		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
