Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2015 Suspension Housing Appelez-nous -
2 25-7930 Screw 5/16-18x3/4 Appelez-nous -
2 35-2531 Brace, Tub Appelez-nous -
3 35-2092 Suspension Spring Appelez-nous -
4 25-0226 Hex Nut Appelez-nous -
5 35-2065 Pad, Motor Plate Appelez-nous -
6 25-7365 Eye Bolt Appelez-nous -
7 35-2017 Retainer, Brake Spring Special Order $ 5.85

8 25-7895 Screw, Susp Hsg To Lwr Brg Asy Appelez-nous -
9 35-2112 Spring, Brake Appelez-nous -
10 35-2113 Brake Roter & Lining Assy Appelez-nous -
11 35-2018 Stator, Brake Appelez-nous -
12 25-7359 Screw Appelez-nous -
13 12002213 Spacer-bearing   (Replaces: 35-2016) In-Stock Immediately $ 98.84

14 25-7909 Washer Appelez-nous -
15 12002213 Washer   (Replaces: 35-2318) In-Stock Immediately $ 98.84

16 12002213 Thrust Bearing   (Replaces: 35-2078) In-Stock Immediately $ 98.84

17 35-2081 Washer Appelez-nous -
18 12002213 Drive Pulley   (Replaces: 35-2683) In-Stock Immediately $ 98.84

20 12002213 Cam, Lower   (Replaces: 35-2439) In-Stock Immediately $ 98.84

21 35-2082 Washer,1.25odx.530idx.062 Special Order $ 5.61

22 WP25-7854 Ring, Retaining   (Replaces: 25-7854) Special Order $ 10.68

23 35-2049 Bar, Stabilizer (with Guide) Appelez-nous -
24 35-2046 Bracket, Stabilizer Special Order $ 39.94

25 35-2052 Pin, Stabilizer Special Order $ 6.02

26 WP22004469 Foot, Self Stabilizer   (Replaces: 35-2050) Special Order $ 14.52

26 35-2039 Pad, Foot Appelez-nous -
27 35-2007 Cap, Dust Appelez-nous -
28 WP489483 Screw, No.10 Torq Limiting   (Replaces: 25-7828) Special Order $ 9.78

29 35-2815 Base, Washer Appelez-nous -
30 25-7838 Speednut Appelez-nous -
31 25-7915 Hex Nut Appelez-nous -
32 35-0772 Foot, Front Appelez-nous -
32 35-0837 Pad, Front Foot Appelez-nous -
33 WP21002026 Snubber   (Replaces: 35-2357) In-Stock Immediately $ 9.68


    View Diagram in Separate Window     Print Icon   Print Part List

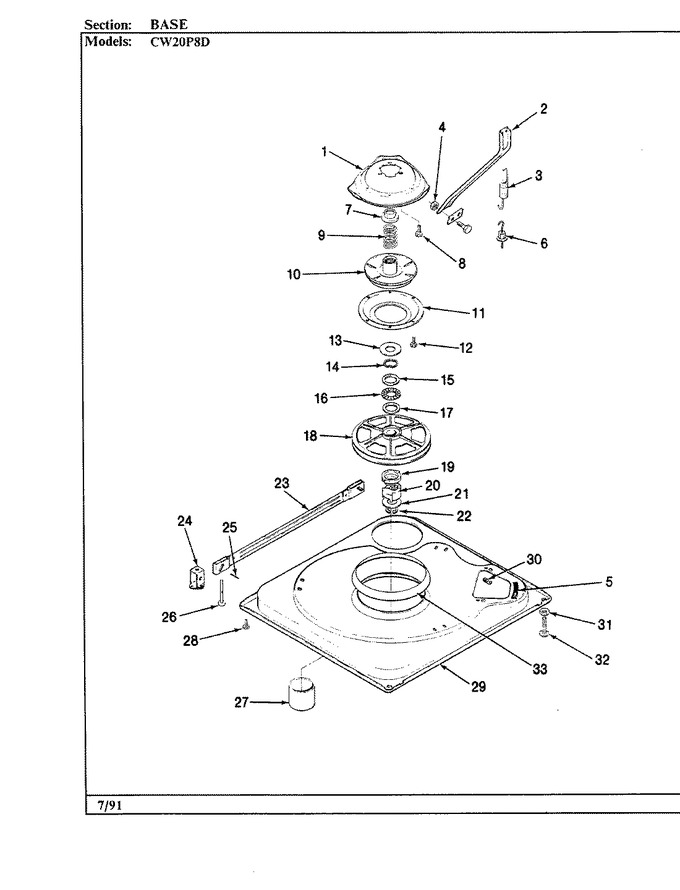

Diagram for CW20P8D
