Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WP25-7893 Screw   (Replaces: 25-7893) Special Order $ 7.14

3 35-2846 Hinge   (Replaces: 33-7450) Special Order $ 22.94

4 33-0930 Pad, Top Hinge Appelez-nous -
5 33-6099 Clamp Appelez-nous -
6 53-0643 Pin, Locator Appelez-nous -
7 34-9701 Guide, Cabinet Appelez-nous -
8 WP3400029 Nut, Locator Pin   (Replaces: 25-0224) In-Stock Immediately $ 6.98

9 53-0643 Pin, Locator Appelez-nous -
10 35-2084 Panel, Front (wht) Appelez-nous -
11 53-0120 Clip, Front Panel Special Order $ 11.32

12 33-2653 Bumper, Cabinet Appelez-nous -
13 35-2106 Cabinet Assy. (wht) Appelez-nous -
14 33-2653 Bumper, Cabinet Appelez-nous -
15 35-2108 Shield,rear(nla,order Cab Kit) Appelez-nous -
16 WP681414 Screw   (Replaces: 25-7733) In-Stock Immediately $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

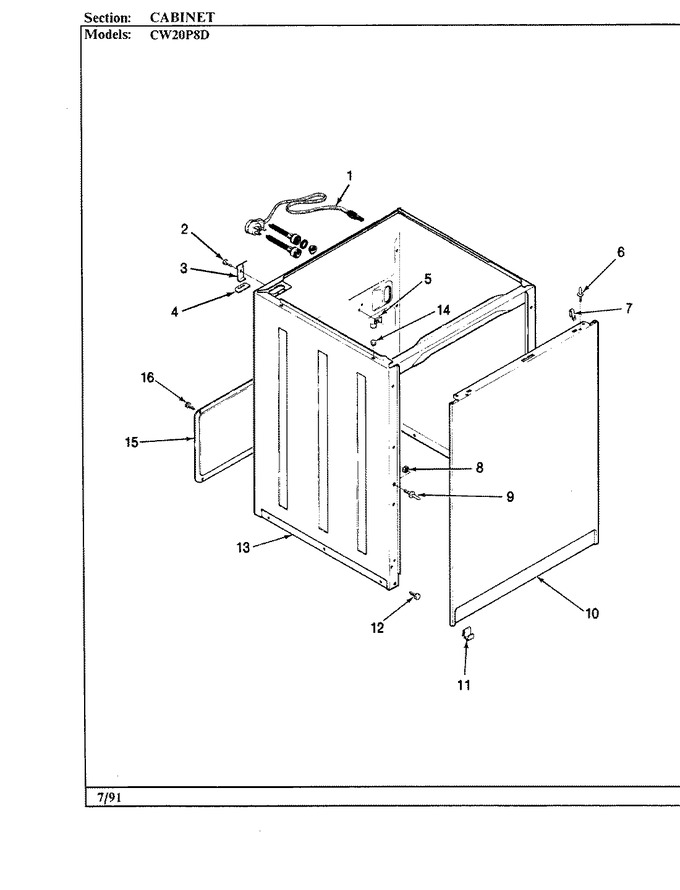

Diagram for CW20P8D
