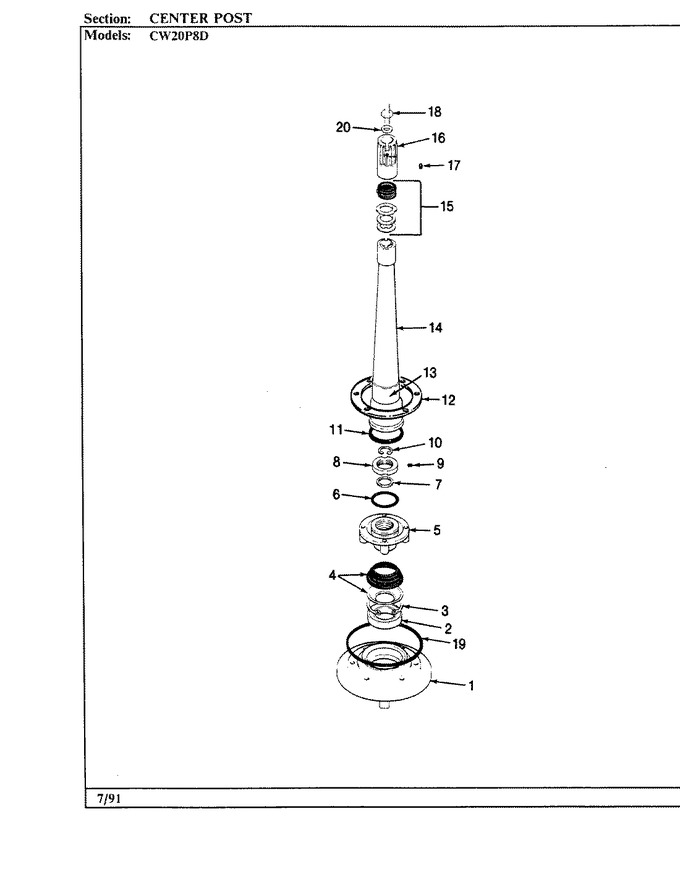

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-2059		Housing, W/o Bearing & Seal		Appelez-nous	-
2	35-2205		Bearing, Spin				$ 40.16
3	25-7849		Retaining Ring		Appelez-nous	-
4	33-7224N		Tub Seal Asm				$ 33.33
5	33-9987		Basket Hub Asm		Appelez-nous	-
6	35-2061		Gasket, Tub To Housing		Appelez-nous	-
7	25-7722		``o`` Ring, Drive Tube		Appelez-nous	-
8	33-9507		Locknut Assy		Appelez-nous	-
9	25-7120		Set Screw		Appelez-nous	-
10	25-7848		Retaining Ring		Appelez-nous	-
11	33-8718		Gasket		Appelez-nous	-
12	35-0930		Gasket		Appelez-nous	-
13	33-6790		Bearing, Agitator		Appelez-nous	-
14	33-4283N		Centerpost Kit		Appelez-nous	-
15	33-7806N		Seal Assembly		Appelez-nous	-
16	33-9729		Drive Block Asm		Appelez-nous	-
17	25-7378		Set Screw		Appelez-nous	-
18	33-6817		Stud		Appelez-nous	-
19	35-2060		Seal, Tub To Housing		Appelez-nous	-
20	25-7316		Flat Washer		Appelez-nous	-
