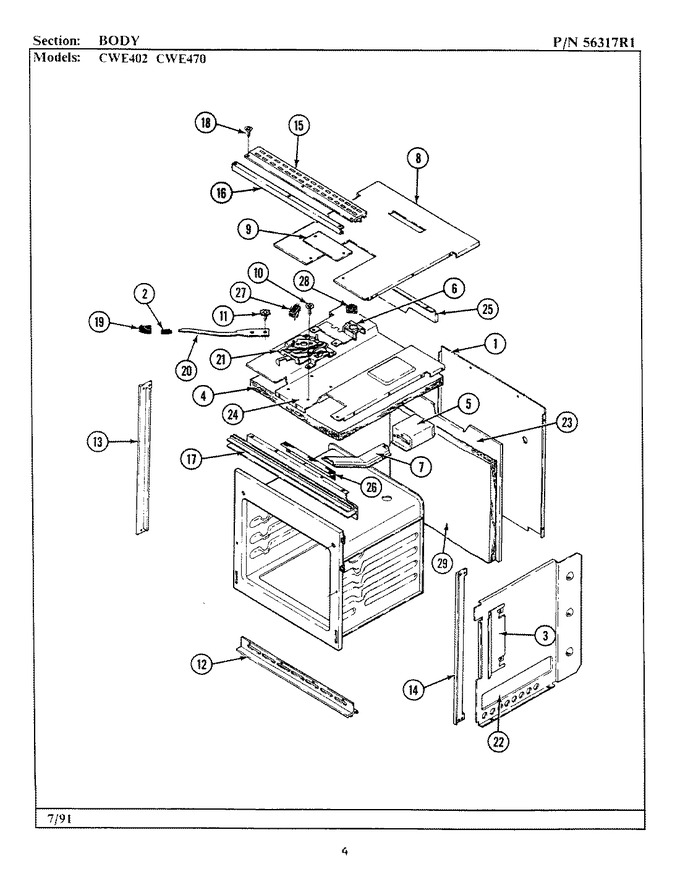

01 - Body (cwe402, Cwe470)
02 - Control Panel (cwe402, Cwe470)
03 - Door (cwe470)
04 - Oven (cwe402, Cwe470)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F121-51 | Back, Main | 00 |
|
- | ||||
| 5 | 4006W046-15 | Box, Vent | 00 |
|
- | ||||
| 7 | 3818W002-15 | Channel, Vent Assembly | 00 |
|
- | ||||
| 8 | 4005F202-51 | Cover, Box | 00 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 12 | 7706P075-60 | Extrusion, Bottom (chr) | 00 |
|
- | ||||
| 13 | 7706P081-60 | Extrusion, Trim | 00 |
|
- | ||||
| 14 | 7706P082-60 | Extrusion, Trim | 00 |
|
- | ||||
| 15 | 7706P078-60 | Extrusion, Top (wht) | 00 |
|
- | ||||
| 16 | 7706P198-60 | Extrusion, Top Front | 00 |
|
- | ||||
| 17 | 7103P051-60 | Nut, Snap | 00 |
|
- | ||||
| 17 | 7103P040-60 | Nut, Snap (wht) | 00 |
|
- | ||||
| 17 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 00 |
|
$ 9.89 | ||||
| 18 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 00 |
|
$ 15.94 | ||||
| 22 | 2618F053-51 | Panel, Side (rt) | 00 |
|
- | ||||
| 22 | 2618F054-51 | Panel, Side (lt) | 00 |
|
- | ||||
| 23 | 3804F096-51 | Retainer, Rear | 00 |
|
- | ||||
| 24 | 3804F053-51 | Retainer,top | 00 |
|
- | ||||
| 25 | 3604F101-80 | Shield, Air | 00 |
|
- | ||||
| 26 | 3604F048-60 | Shield, Terminal | 00 |
|
- | ||||
| 27 | 7101P035-60 | Screw, Switch | 00 |
|
- |
