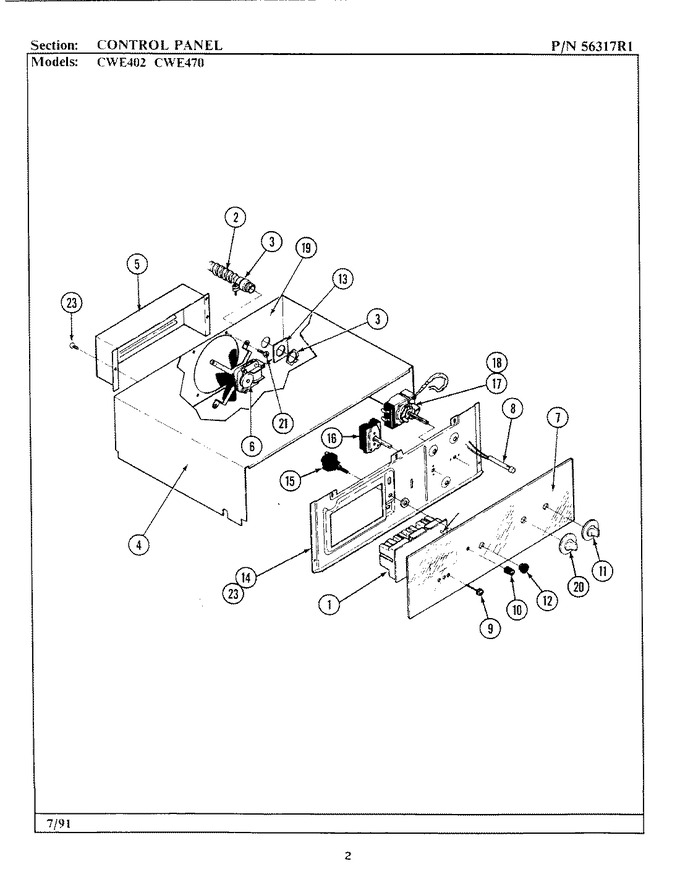

SELECT A DIAGRAM

01 - Body (cwe402, Cwe470)


02 - Control Panel (cwe402, Cwe470)


03 - Door (cwe470)


04 - Oven (cwe402, Cwe470)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7601P053-60		Clock	00	Appelez-nous	-
1	7601P123-60K		Clock	04	Appelez-nous	-
2	3414P037-44		Conduit, Flexible	00	Appelez-nous	-
3	7417P017-60		Connector, Cable	08			$ 9.81
3	3414P037-44		Conduit, Flexible	00	Appelez-nous	-
4	4005F150-51		Cover, Wire	00	Appelez-nous	-
5	4005F262-51		Cover, Fan	00	Appelez-nous	-
6	8008P004-60		Grommet	00	Appelez-nous	-
6	7427P006-60		Fan Assembly	00	Appelez-nous	-
7	7902P172-60		Glass, Control	00	Appelez-nous	-
7	8010P050-60		Felt, Disc	00	Appelez-nous	-
8	5700A236-60		Light, Indicator	00	Appelez-nous	-
8	7414P004-60		Insulator, Terminal	00	Appelez-nous	-
9	7711P171-60		Knob, Clock (button-blk)	00			$ 19.90
10	7711P172-60		Knob, Clock (blk)	00			$ 23.55
11	WP7711P354-60		Knob, Thermostat   (Replaces: 7711P354-60)	00			$ 17.81
12	7214P007-60		Sleeve, Switch (blk)	00	Appelez-nous	-
13	3605F131-51		Plate, Reinforcement	00	Appelez-nous	-
14	3605F170-80		Plate, Switch	00	Appelez-nous	-
15	7403P109-60		Switch, Push (blk)	00	Appelez-nous	-
16	7403P023-60		Switch, Selector	00	Appelez-nous	-
17	7101P279-60		Screw W/washer	00	Appelez-nous	-
17	7404P039-60		Thermostat, Upper	00	Appelez-nous	-
17	7003P033-60		Insulation Thermostat	00	Appelez-nous	-
18	7101P280-60		Screw W/washer (blk)	00	Appelez-nous	-
19	3605F164-51		Plate, Conduit	00	Appelez-nous	-
20	7711P357-60		Knob, Selector	00			$ 15.74
21	7101P079-60		Screw	00	Appelez-nous	-
23	WP7101P126-60		Screw   (Replaces: 7101P061-60)	00		Immediately	$ 6.85
NI	8312P017-60		Shaft, Clock	04	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
