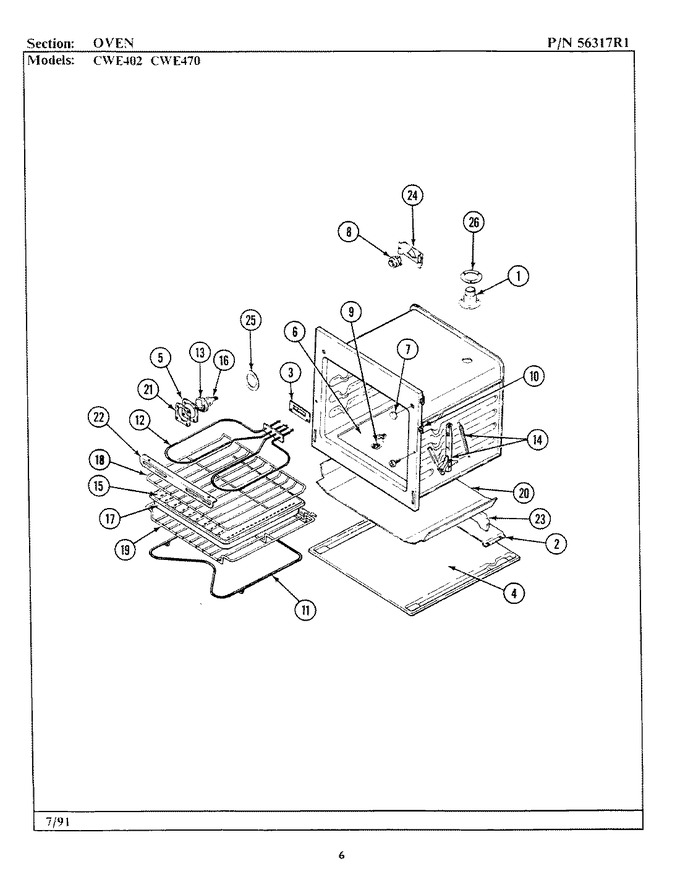

SELECT A DIAGRAM

01 - Body (cwe402, Cwe470)


02 - Control Panel (cwe402, Cwe470)


03 - Door (cwe470)


04 - Oven (cwe402, Cwe470)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7505P018-60		Catalyst Burner	00	Appelez-nous	-
2	3601F005-80		Baffle, Base	00	Appelez-nous	-
4	WP7101P485-60		Screw, Base   (Replaces: 7101P084-60)	00			$ 26.33
4	4003F011-80		Base, Wall Oven	00	Appelez-nous	-
6	2205F003-15		Bottom, Oven (upper)	00	Appelez-nous	-
7	8003P002-60		Bumper Door (round)	00	Appelez-nous	-
9	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	00		Immediately	$ 11.07
10	7112P020-60		Clip, Oven Front	00	Appelez-nous	-
11	WPY04000066		Element Bake   (Replaces: 7406P013-60)	00		Immediately	$ 70.53
15	4396923		Insert, Broil Pan   (Replaces: 3413F012-15)	00		Immediately	$ 52.04
16	40A15		Bulb, Oven   (Replaces: 7407P026-60)	00		Immediately	$ 1.98
17	4396923		Pan, Broiler   (Replaces: 3401F015-15)	00		Immediately	$ 52.04
18	7801P005-60		Rack	00	Appelez-nous	-
19	7801P007-60		Rack, Offset	00	Appelez-nous	-
20	3804W034-51		Retainer, Bottom	00	Appelez-nous	-
22	3807F176-15		Support, Broil Element	00	Appelez-nous	-
23	3807F137-80		Support	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
