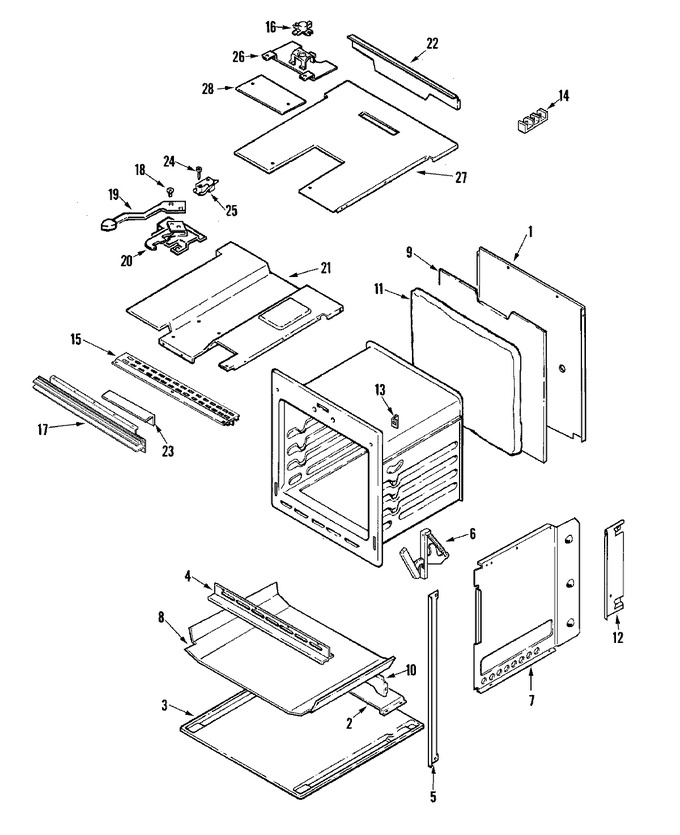

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001395 | Screw | 10 |
|
- | ||||
| 1 | 4002F121-51 | Back, Main | 10 |
|
- | ||||
| 2 | 3601F005-61 | Baffle, Base | 10 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 3 | 74001845 | Base, Oven | 10 |
|
- | ||||
| 4 | WP98008545 | Screw (blk) (Replaces: 74009537) | 10 |
|
$ 15.94 | ||||
| 4 | 74001846 | Extrusion, Bottom (blk) | 10 |
|
- | ||||
| 5 | 74001569 | Trim, Side (rt-blk) | 10 |
|
- | ||||
| 5 | 74001570 | Trim, Side (lt-blk) | 10 |
|
- | ||||
| 6 | 74001984 | Hinge, Door | 10 |
|
$ 126.36 | ||||
| 6 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 7 | 74010595 | Panel, Side-rt | 10 |
|
- | ||||
| 7 | 74010594 | Panel, Side-lt | 10 |
|
- | ||||
| 8 | 3804F104-51 | Retainer, Bottom Insulation | 10 |
|
- | ||||
| 8 | 7002P163-60 | Insulation (bottom) | 10 |
|
- | ||||
| 9 | 3804F096-51 | Retainer, Rear | 10 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 10 | 790263 | Support, Lower | 10 |
|
- | ||||
| 11 | 7002P154-60 | Insulation (back) | 10 |
|
- | ||||
| 11 | 7002P153-60 | Insulation (top & Rear) | 10 |
|
- | ||||
| 12 | 3601F244-51 | Baffle, Side | 10 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 13 | 790399 | Clip, Oven Front | 10 |
|
- | ||||
| 14 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 15 | WP98008545 | Screw (blk) (Replaces: 74009537) | 10 |
|
$ 15.94 | ||||
| 15 | 7752P011-60 | Extrusion, Top (blk) | 10 |
|
- | ||||
| 16 | 7403P063-60 | Switch, High Limit | 10 |
|
$ 156.41 | ||||
| 17 | 7756P070-60 | Extrusion, Vent (blk) | 10 |
|
- | ||||
| 17 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 10 |
|
$ 9.89 | ||||
| 17 | 7103P051-60 | Nut, Snap | 10 |
|
- | ||||
| 18 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 19 | 74003005 | Lever, Latch (blk) | 10 |
|
- | ||||
| 20 | 8002P072-60 | Latch, Door (Replaces: 74006343) | 10 |
|
$ 306.52 | ||||
| 21 | 3804F118-51 | Retainer, Top | 10 |
|
- | ||||
| 22 | 3604F101-80 | Shield, Air | 10 |
|
- | ||||
| 23 | 3604F048-80 | Shield, Terminal | 10 |
|
- | ||||
| 24 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 25 | 74009591 | Switch, Door Latch | 10 |
|
$ 102.26 | ||||
| 26 | 3801F128-45 | Bracket, Hi Limit | 10 |
|
- | ||||
| 27 | 74009403 | Cover, Box | 10 |
|
- | ||||
| 28 | 4005F160-45 | Cover, Lock | 10 |
|
- |
